Elements for washbasins

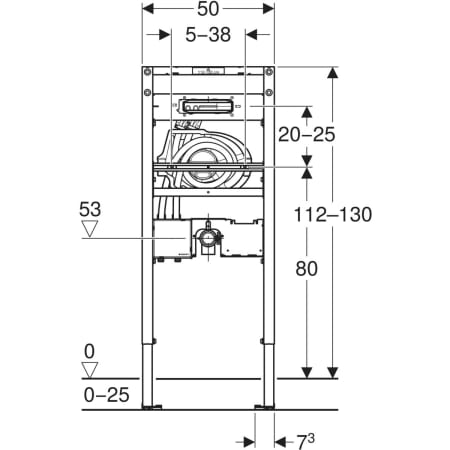

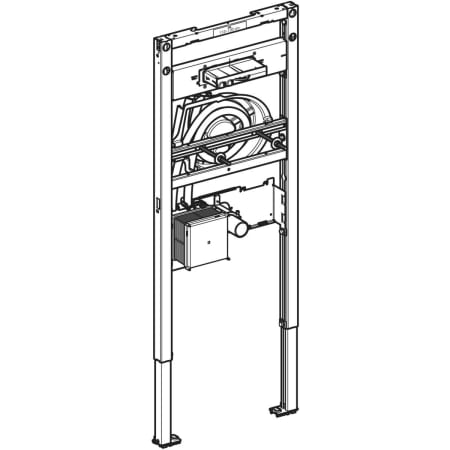

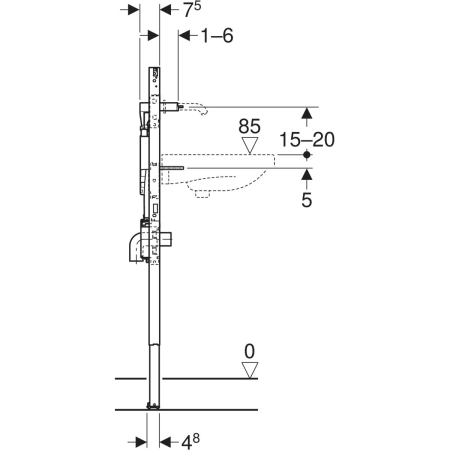

Geberit Duofix element for washbasin, 112–130 cm, Geberit ONE wall-mounted tap with concealed function box

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Replaces art. no. 111.069.00.1

Art. no.
111.069.00.2
B

50 cm

H

112–130 cm

Technical data

Product material

Steel

Height-adjustable

No

Application purposes

Click on an application purpose to search more products

For metal and wood frame wallsFor Geberit Duofix system wallsFor installation in part- or room-height prewallsFor installation in room-height partition walls
For floor constructions 0–25 cmFor installation of washbasinsFor Geberit ONE washbasin taps, wall-mounted, with concealed function box

Characteristics

Click on a characteristic to search more products

2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingWith pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studsAlternative fastening point for wall anchorsRotating foot plates, suitable for installation in U profiles UW 50 and UW 75Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional componentsGalvanised non-slip leg supports protected against corrosionFastening distance for washbasin 5–38 cm
Premounted fastening for wall-mounted tapWater supply connection compatible with MasterFix and MeplaFixWater supply connection on the bottom of concealed housingFastening for connection bend, height-adjustable and sound-absorbingConcealed housing for Geberit ONE washbasin tap, premountedPremounted connection pipes between concealed housing and fastening for wall-mounted tapShut-off unit integrated in the concealed housing

Scope of delivery

  • Connection bend made of PE-HD, ø 50 mm

  • Seal ø 44 / 32 mm

  • Protection box with cover, for concealed housing

  • Protection box for fastening of wall-mounted tap

  • Fastening material

Accessories

Geberit Duofix fastening material for stud clearance 50–57.5 cm

Accessories

Geberit Duofix fastening material for stud clearance 50–57.5 cm

111.869.00.1

Geberit Duofix set of wall anchors for single installation

Accessories

Geberit Duofix set of wall anchors for single installation

111.815.00.1

Geberit Duofix set of wall anchors for single installation, corner construction

Accessories

Geberit Duofix set of wall anchors for single installation, corner construction

111.835.00.1

Geberit Duofix set of wall anchor extensions

Accessories

Geberit Duofix set of wall anchor extensions

111.887.00.1

Geberit cover plate, surface-even, for concealed function box

For washbasin taps

Geberit cover plate, surface-even, for concealed function box

116.421.00.1

Geberit protection cover for cover plate, surface even, for concealed function box

For washbasin taps

Geberit protection cover for cover plate, surface even, for concealed function box

244.654.00.1

Geberit cover plate for concealed function box

For washbasin taps

Geberit cover plate for concealed function box

116.425.11.1

Geberit Duofix set of wall anchors for single and system installation

Support systems

Geberit Duofix set of wall anchors for single and system installation

111.080.00.1

Geberit Duofix set of foot extensions 20 cm length

Accessories

Geberit Duofix set of foot extensions 20 cm length

111.848.00.2

Replaces art. no. 111.848.00.1

Can be combined with

Geberit ONE washbasin tap, round design, wall-mounted, two-handle mixer, for concealed function box
ONE

Taps

Geberit ONE washbasin tap, round design, wall-mounted, two-handle mixer, for concealed function box

2 Articles

Geberit ONE washbasin tap, square design, wall-mounted, two-handle mixer, for concealed function box
ONE

Taps

Geberit ONE washbasin tap, square design, wall-mounted, two-handle mixer, for concealed function box

2 Articles
