Articles
Click on the icon with the 3 dots to have more options for each item.
Replaces art. no. 111.480.00.1
| Art. no. | 111.480.00.2 |
| B | 50 cm |
| H | 112 cm |
Geberit Duofix element for washbasin, 112 cm, deck-mounted tap, with concealed trap
My list (0)
Technical data
Product material Steel |
Height-adjustable Yes |
Product material Steel |
Height-adjustable Yes |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products

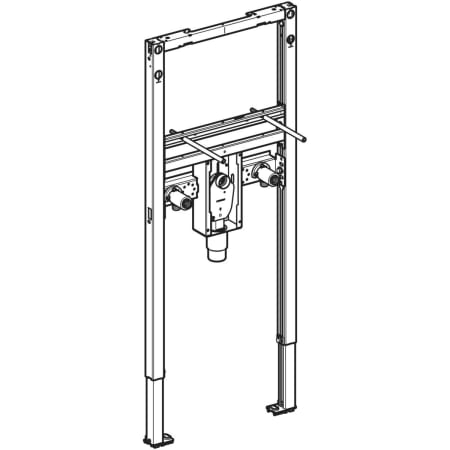

2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingWith pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studsAlternative fastening point for wall anchorsRotating foot plates, suitable for installation in U profiles UW 50 and UW 75Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional componentsGalvanised non-slip leg supports protected against corrosion

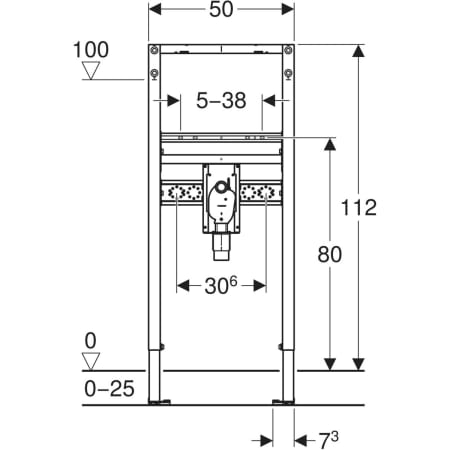

Fastening distance for washbasin 5–38 cmThreaded rods adjustable in depth with 18 or 28 cm fastening distanceConcealed trap with optimum flow guidance and high self-cleaning effectConcealed trap can be height-adjusted ± 3 cm during final installationIn-wall cabinet with straight connector made of PP, ø 50 mmFastening for connection bend, height-adjustable and sound-absorbingCrossbar for tap adjustable in height and depth
Scope of delivery
2 elbow tap connectors Rp 1/2" / R 1/2", compatible with MF
2 sound insulation bases
2 insulating sleeves
Protection box
Fastening material
