Geberit Type 80 washbasin tap, mains operation
My list (0)
Technical data
Protection degree IP44 |
Nominal voltage 230 V AC |
Mains frequency 50–60 Hz |
Operating voltage 12 V AC |
Cable length 1.9 m |
Operating pressure 0.5–8 bar |
Differentiated pressure CW/WW max. 1.5 bar |
Test pressure, water max. 16 bar |
Test pressure, air / inert gas max. 3 bar |
Ambient temperature 1–40 °C |
Operating temperature, water, short-term max. 90 °C |
Flow rate at 3 bar 1.3 l/min |
Interval flush time, factory setting 3 s |
Product material Die-cast zinc, chrome-plated |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Basket filter
Power supply unit plug
Tap aerator key
Fastening material
Documents
Your input does not return any results
Spare parts

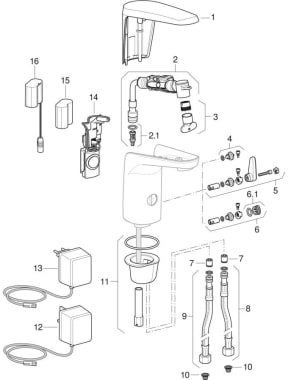

Washbasin taps type 80, mains / battery operation
Washbasin taps type 80, mains / battery operation
2022 -
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 244.455.00.1 | Geberit upper part of tap housing, for Type 80 washbasin tap | ||
| 2 | 244.456.00.1 | Geberit solenoid valve for Type 80 washbasin tap | ||
| 2.1 | 244.457.00.1 | Geberit set of filters for Type 80 washbasin tap | ||
