Geberit Type 185 washbasin tap, mains operation

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.	116.145.21.5
Colour / surface	chrome / glossy
Mixer	with mixer

Technical data

Degree of protection	IP44	Degree of protection IP44
Nominal voltage	230 V AC	Nominal voltage 230 V AC
Operating voltage	12 V AC	Operating voltage 12 V AC
Mains frequency	50–60 Hz	Mains frequency 50–60 Hz
Cable length	1.9 m	Cable length 1.9 m
Operating pressure	0.5–8 bar	Operating pressure 0.5–8 bar
Differentiated pressure CW/WW max.	1.5 bar	Differentiated pressure CW/WW max. 1.5 bar

Water test pressure max.	16 bar	Water test pressure max. 16 bar
Test pressure air / inert gas max.	3 bar	Test pressure air / inert gas max. 3 bar
Ambient temperature	1–40 °C	Ambient temperature 1–40 °C
Water temperature short-term max.	90 °C	Water temperature short-term max. 90 °C
Flow rate at 300 kPa / 3 bar	1.3 l/min	Flow rate at 300 kPa / 3 bar 1.3 l/min
Interval flush time, factory setting	3 s	Interval flush time, factory setting 3 s
Product material	Brass chrome-plated	Product material Brass chrome-plated

Degree of protection	IP44	Degree of protection IP44
Nominal voltage	230 V AC	Nominal voltage 230 V AC
Operating voltage	12 V AC	Operating voltage 12 V AC
Mains frequency	50–60 Hz	Mains frequency 50–60 Hz
Cable length	1.9 m	Cable length 1.9 m
Operating pressure	0.5–8 bar	Operating pressure 0.5–8 bar
Differentiated pressure CW/WW max.	1.5 bar	Differentiated pressure CW/WW max. 1.5 bar
Water test pressure max.	16 bar	Water test pressure max. 16 bar
Test pressure air / inert gas max.	3 bar	Test pressure air / inert gas max. 3 bar
Ambient temperature	1–40 °C	Ambient temperature 1–40 °C
Water temperature short-term max.	90 °C	Water temperature short-term max. 90 °C
Flow rate at 300 kPa / 3 bar	1.3 l/min	Flow rate at 300 kPa / 3 bar 1.3 l/min
Interval flush time, factory setting	3 s	Interval flush time, factory setting 3 s
Product material	Brass chrome-plated	Product material Brass chrome-plated

Application purposes

Click on an application purpose to search more products

For extracting tap water For public and semipublic areas For installation in washbasins or washtops For connecting cold and hot water (only for model with mixer)

For connecting cold or mixed water (only for model without mixer)Suitable for use with stainless steel sinks Model without mixer suitable for combination with continuous flow heater, see technical data sheet "Washbasin taps with continuous flow heaters"

Characteristics

Click on a characteristic to search more products

Tap group I in accordance with DIN 4109 Infrared user detection Vandal-resistant Temperature presetting via mixer (only for model with mixer)Not possible to set just hot water or just cold water (only for model with mixer)Functions can be set and queried with the Geberit Service Handy

Device settings and operation with mobile device via integrated Bluetooth® interface Compatible with Geberit Control App Wirelessly connectable with Geberit Gateway via Bluetooth®Compatible with Geberit Connect With integrated check valve

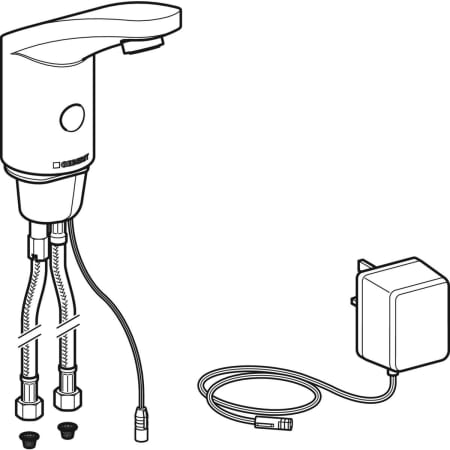

Scope of delivery

Basket filter
Power supply unit plug
Tap aerator key
Fastening material
