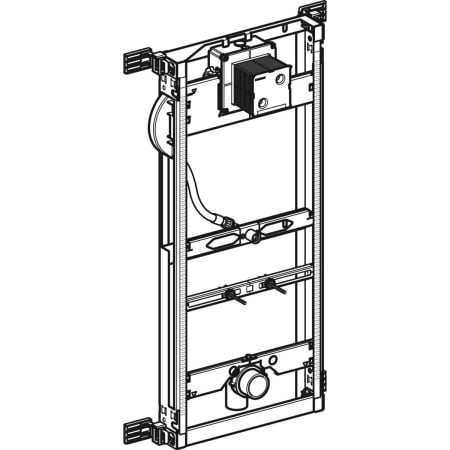

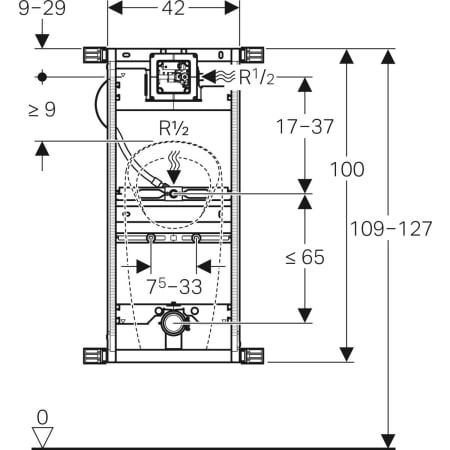

Geberit Kombifix element for urinal, 109–127 cm, universal, for spray head
Sections:
My list (0)
Technical data
Flow pressure 1–8 bar |
Test pressure, water max. 16 bar |
Test pressure, air / inert gas max. 3 bar |
Flow rate at 1 bar without flow limiter 0.3 l/s |
Flow rate at 1 bar with flow limiter 0.24 l/s |
Product material Steel |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Zinc-plated mounting frameMounting frame with four fixing bracketsConnection positions for Preda urinal preparedWater supply connection compatible with MasterFix and MeplaFixElbow connector can be mounted without toolsPremounted stop valve with throttle
Flush hose can be bentFlush hose with guide to prevent standing waterFastening for connection bend, height-adjustable and sound-absorbingUrinal fasteners M8 width- and height-adjustableCrossbars with centring marks, adjustable without toolsMarkings for connection positions of Preda and Selva urinals
Scope of delivery
Water supply connection R 1/2"
Protection box for service opening
Urinal trap ø 50 mm, with seal on urinal
Connection bend made of PE-HD, ø 50 / 63 mm
Seal ø 57 / 50 mm
2 protection plugs
2 threaded rods M8
Fastening material
Documents
Your input does not return any results
Spare parts
Geberit Kombifix elements for urinal, universal
Geberit Kombifix elements for urinal, universal
2009 -
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 242.195.00.1 | Geberit flush hose for urinal, long | ||
| 2 | 242.039.00.1 | Geberit Inlet crossbar di32, for element for urinal | ||
| 2.1 | 362.790.00.1 | Geberit HDPE round cord ring: d=32mm, DN=30 | ||
