| Art. no. | 116.028.00.1 |
| Power consumption | ≤ 0.5 W |
Additional information
- Cover plate has to be ordered separately
Geberit urinal flush control with electronic flush actuation, mains operation, without cover plate
My list (0)
Technical data
Degree of protection IP45 |
Nominal voltage 110–240 V AC |
Mains frequency 50–60 Hz |
Operating voltage 4.5 V DC |
Flow pressure 1–8 bar |
Water test pressure max. 16 bar |
Test pressure air / inert gas max. 3 bar |
Flow rate at 100 kPa / 1 bar without flow limiter 0.3 l/s |
Flow rate at 100 kPa / 1 bar with flow limiter 0.18 l/s |
Interval flush time, factory setting 5 s |
Detection time, factory setting 7 s |
Flush time, adjustment range 1–15 s |
Flush time, factory setting 1 s |
Degree of protection IP45 |
Nominal voltage 110–240 V AC |
Mains frequency 50–60 Hz |
Operating voltage 4.5 V DC |
Flow pressure 1–8 bar |
Water test pressure max. 16 bar |
Test pressure air / inert gas max. 3 bar |
Flow rate at 100 kPa / 1 bar without flow limiter 0.3 l/s |
Flow rate at 100 kPa / 1 bar with flow limiter 0.18 l/s |
Interval flush time, factory setting 5 s |
Detection time, factory setting 7 s |
Flush time, adjustment range 1–15 s |
Flush time, factory setting 1 s |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Flushvolume preset to 0.5 l per flushWater-saving hybrid mode can be setAdjustable interval flushPreflush can be setPower failure control unitValve-closing function when power failsDevice settings and operation with mobile device via integrated Bluetooth® interface
Functions can be set and queried with the Geberit Service HandyCompatible with Geberit Control AppWired networkable with Geberit gateway via GEBUS converterWirelessly connectable with Geberit Gateway via Bluetooth®Compatible with Geberit ConnectTap group II in accordance with DIN 4109Components in contact with drinking water lead-free

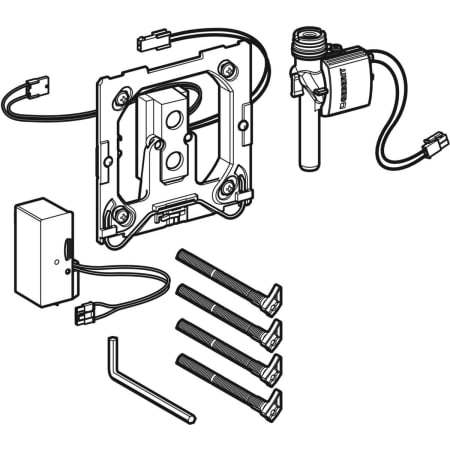

Scope of delivery
Mounting frame
Infrared control, premounted on mounting frame
Solenoid valve
Power supply unit
Fastening material
To order additionally
Cover plate with IR window
Geberit Control – The app for professional work on Geberit products in public spaces
Geberit Control offers users digital access to Geberit products for simple and efficient management of sanitary facilities by facility managers and plumbers. All functions in the app are free of charge.
