Replaces art. no. 691.228.2P.2
| Art. no. | 691.229.2P.2 |
| Compatibility | [2] [2XL] |
| Protection class | III |
Geberit ACO 203XLplus pressing tool [2], [2XL], 125 V, in case
My list (0)
Technical data
Nominal force 32 kN |
Degree of protection IP20 |
Nominal voltage 125 V AC |
Operating voltage 18 V DC |
Mains frequency 50–60 Hz |
Rechargeable battery type lithium-ion battery |
Operating temperature -20 – +60 °C |
Operating temperature, rechargeable battery -10 – +50 °C |
Sound pressure level 78 dB(A) |
Sound power level max. 89 dB(A) |
Vibration emission value max. 2.5 m/s² |
Nominal force 32 kN |
Degree of protection IP20 |
Nominal voltage 125 V AC |
Operating voltage 18 V DC |
Mains frequency 50–60 Hz |
Rechargeable battery type lithium-ion battery |
Operating temperature -20 – +60 °C |
Operating temperature, rechargeable battery -10 – +50 °C |
Sound pressure level 78 dB(A) |
Sound power level max. 89 dB(A) |
Vibration emission value max. 2.5 m/s² |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products

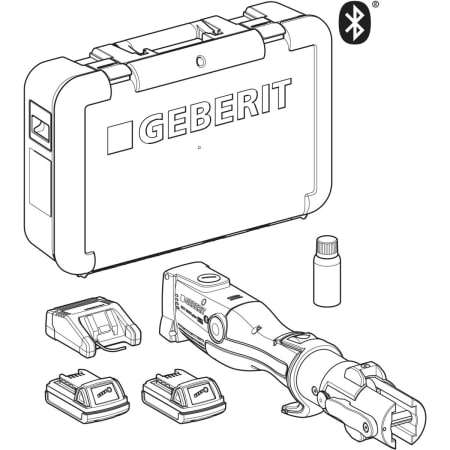

Scope of delivery
Battery-operated pressing tool [2XL] 18 V DC
Battery charger
Cleaning agents and lubricants
2 lithium-ion rechargeable batteries, 18 V / 5 Ah
Case
