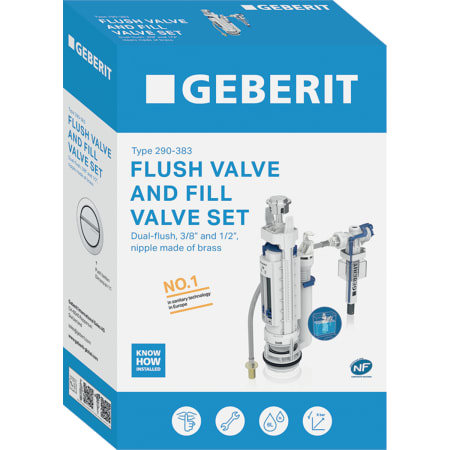

Geberit Type 290-383 mechanism, dual flush, universal water supply connection, 3/8'' and 1/2'', nipple made of brass

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Replaces art. no. 283.313.21.2

Art. no.	283.313.21.5
Colour / surface	chrome / glossy

Technical data

Flow pressure	0.1–10 bar	Flow pressure 0.1–10 bar
Storage temperature	≤ 40 °C	Storage temperature ≤ 40 °C
Flush volume large, adjustment range	4–9 l	Flush volume large, adjustment range 4–9 l
Flush volume small, adjustment range	2–4.5 l	Flush volume small, adjustment range 2–4.5 l

Actuation force

18 N

Flow pressure	0.1–10 bar	Flow pressure 0.1–10 bar
Storage temperature	≤ 40 °C	Storage temperature ≤ 40 °C
Flush volume large, adjustment range	4–9 l	Flush volume large, adjustment range 4–9 l
Flush volume small, adjustment range	2–4.5 l	Flush volume small, adjustment range 2–4.5 l
Actuation force	18 N	Actuation force 18 N

Application purposes

Click on an application purpose to search more products

For greywater and rainwater with pH value 5.5–9.5, if a filter system is used For ceramic cisterns For potable water For water supply connections 1/2''

For water supply connections 3/8''

Characteristics

Click on a characteristic to search more products

Dual flush Adjustable filling height Threaded nipple made of brass Height-adjustable Small and large flush volume can be set depending on the amount of water in the cistern

Overflow pipe height-adjustable Water supply connection on the left/right Water supply connection on the bottom With lid attachment

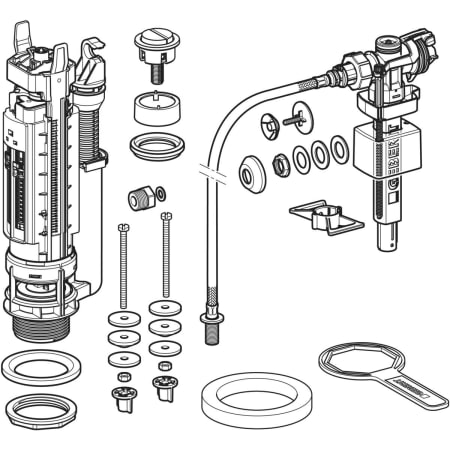

Scope of delivery

Fastening material
