Replaces art. no. 111.581.00.1
| Art. no. | 111.581.00.2 |
| DN | 40 |
| d, ø | 40 mm |
Additional information
- Natural stone tiles in the shower area may discolour

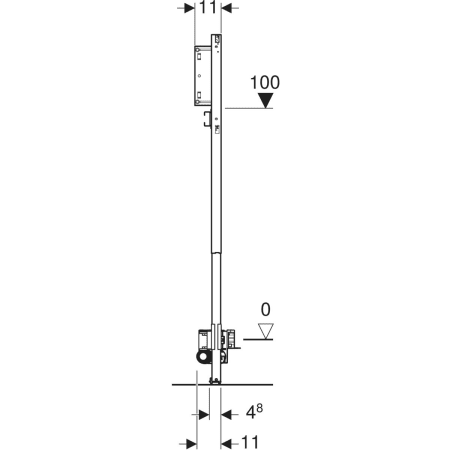

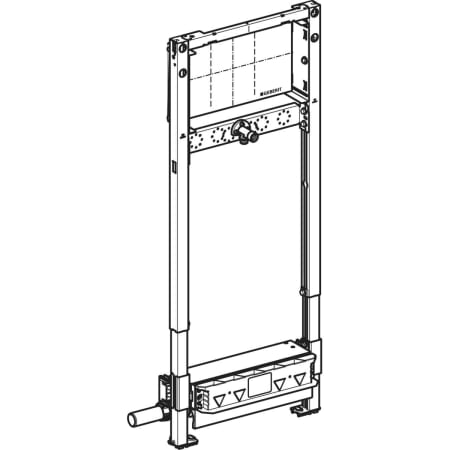

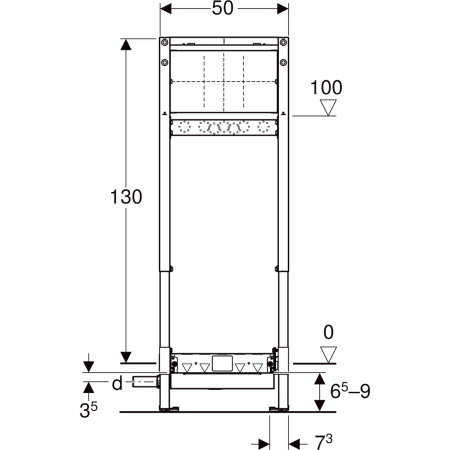

Geberit Duofix element for shower, 130 cm, with CleanWall wall drain, wall-mounted tap, concealed, for screed height at inlet 65–90 mm
My list (0)
Technical data
Depth of water seal (mm) 30 mm |
Depth of water seal (mm) 30 mm |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingWith pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studsAlternative fastening point for wall anchorsRotating foot plates, suitable for installation in U profiles UW 50 and UW 75Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional componentsGalvanised non-slip leg supports protected against corrosionAdjustable sealing level for tension-free sealing connectionPremounted sealing fleeceSealing fleece, 10 cm circumferential, for connecting sealing systems
Mounting plate adjustable in height and depthMounting plate made of veneered wood, waterproof bondedBuilding material class B2 in accordance with DIN 4102-1, resp. class D-s2, d0 in accordance with EN 13501-3Formaldehyde release class A in accordance with EN 1084, resp. Class E 1 according to EN 13936Deviating from the requirements from EN 1253, the depth of water seal is just 30 mmAdjustable inlet height of trapPanelling thickness 10–40 mmSuitable for tile structures on floor 2–26 mmSuitable for tile structures on wall 2–35 mmLateral drainage connection
Scope of delivery
Straight connector made of PE-HD, ø 40 mm
Elbow tap connector Rp 1/2" / R 1/2", compatible with MF
Sealing washer
Sound insulation base
Insulating sleeve
Protection box cover with integrated outlet sheet
Fastening and protection material
To order additionally
Ready-to-fit set
