Replaces art. no. 111.780.00.1

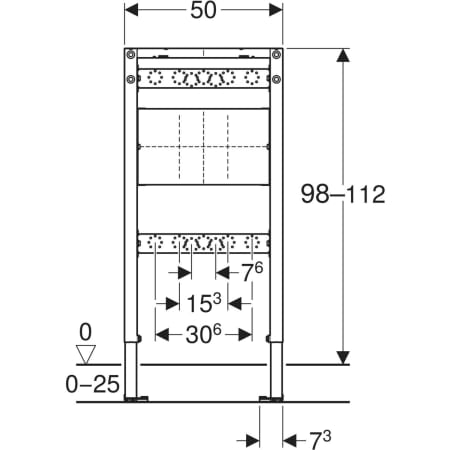

| Art. no. | 111.780.00.2 |
| B | 50 cm |
| H | 98–112 cm |
Geberit Duofix element for shower and bathtub, 98–112 cm, wall-mounted tap, concealed
My list (0)
Technical data
Product material Steel |
Height-adjustable Yes |
Product material Steel |
Height-adjustable Yes |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingWith pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studsAlternative fastening point for wall anchorsRotating foot plates, suitable for installation in U profiles UW 50 and UW 75Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components
Galvanised non-slip leg supports protected against corrosionMounting plate adjustable in height and depthMounting plate made of veneered wood, waterproof bondedBuilding material class B2 in accordance with DIN 4102-1, resp. class D-s2, d0 in accordance with EN 13501-3Formaldehyde release class A in accordance with EN 1084, resp. Class E 1 according to EN 13936Crossbar for tap adjustable in height and depth
Scope of delivery
Elbow tap connector Rp 1/2" / R 1/2", compatible with MF
Elbow tap connector Rp 3/4" / R 1/2", compatible with MF
2 sound insulation bases
2 insulating sleeves
Fastening material
