Replaces art. no. 458.204.21.2
| Art. no. | 458.204.21.3 |
| Colour / surface | chrome / glossy |
| B | 50 cm |
Additional information
- Actuator plate has to be ordered separately

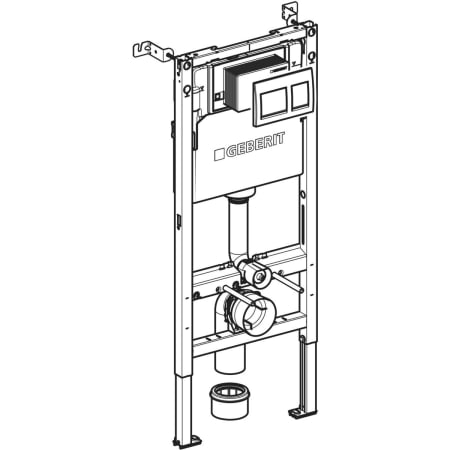

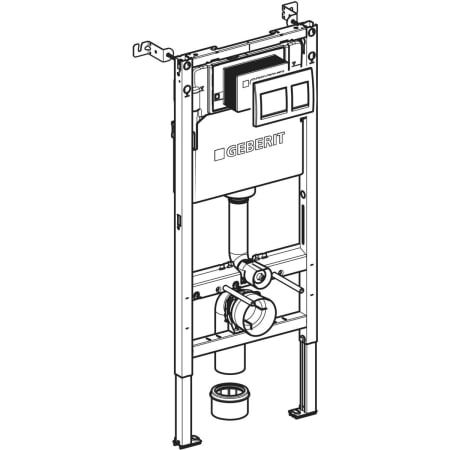

Geberit Duofix element for wall-hung WC, 112 cm, with Alpha concealed cistern 12 cm, 4.5/3 litres, Alpha25 (ex Alpha35) actuator plate, square
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Flush volume, factory setting 4.5 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Button shape square |
Product material Steel |
Height-adjustable Yes |
Flow pressure 0.1–10 bar |
Flush volume, factory setting 4.5 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Button shape square |
Product material Steel |
Height-adjustable Yes |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingFrame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 62 cmAlternative fastening point for wall anchorsFoot plates made of plasticFoot plate depth suitable for installation in U-profiles UW 50
Galvanised leg supports protected against corrosionGeberit Alpha concealed cistern 12 cm fully insulated against condensationFor front actuation, suitable for dual flushImmediate post flush possible with factory settingProtection box for service opening, can be cut to length, protects against moisture and dirtWater supply connection on the rear or top centre
Scope of delivery
Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring
Protection box for service opening
2 wall anchors
115.045.21.5 - a-pl Alpha25 sq dual pl bright chr
Connection set for WC, ø 90 mm
Connection bend 90° made of PE-HD, ø 90 mm
Adapter socket made of PE-HD, ø 90 / 110 mm
Fastening and protection material
