Replaces art. no. 359.031.00.1
| Art. no. | 359.117.00.1 |
| DN | 56 |
| Sealing of connection | CrNi steel 1.4301 |
Additional information
- Must not be used for bitumen roof foils
Geberit Pluvia roof outlet with fastening flange, for roof foils
My list (0)
Technical data
Head of water max. 40 mm |
Head of water max. 40 mm |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products

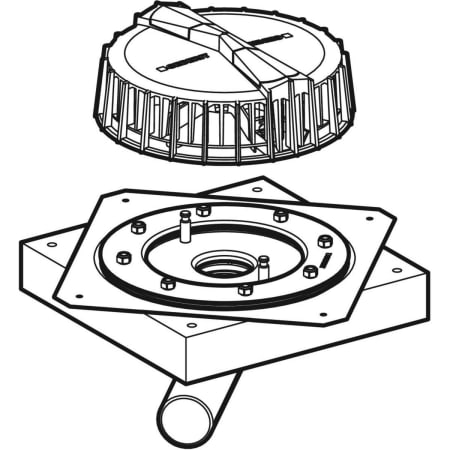

Scope of delivery
Outlet grating with function disc
Base unit with contact sheet made of CrNi steel 1.4301
Flange gasket made of EPDM
Fastening flange with prevailing torque nuts
Anticondensation insulation
