| Art. no. | 116.132.21.5 |
| Colour / surface | chrome / glossy |
| Mixer | with mixer |

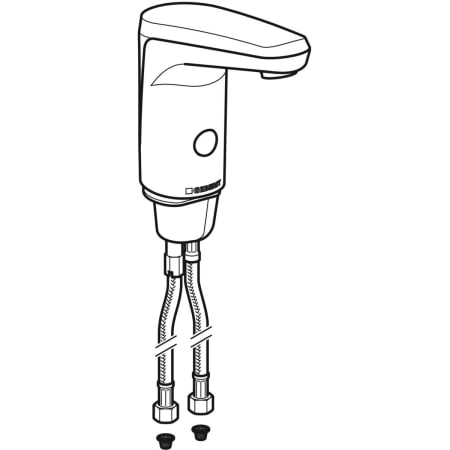

Geberit Type 80 washbasin tap, battery operation
My list (0)
Technical data
Battery type CR-P2 (6 V) |
Degree of protection IP44 |
Operating voltage 6 V DC |
Operating pressure 0.5–8 bar |
Differentiated pressure CW/WW max. 1.5 bar |
Water test pressure max. 16 bar |
Test pressure air / inert gas max. 3 bar |
Ambient temperature 1–40 °C |
Water temperature short-term max. 90 °C |
Flow rate at 300 kPa / 3 bar 1.3 l/min |
Interval flush time, factory setting 3 s |
Product material Die-cast zinc, chrome-plated |
Battery type CR-P2 (6 V) |
Degree of protection IP44 |
Operating voltage 6 V DC |
Operating pressure 0.5–8 bar |
Differentiated pressure CW/WW max. 1.5 bar |
Water test pressure max. 16 bar |
Test pressure air / inert gas max. 3 bar |
Ambient temperature 1–40 °C |
Water temperature short-term max. 90 °C |
Flow rate at 300 kPa / 3 bar 1.3 l/min |
Interval flush time, factory setting 3 s |
Product material Die-cast zinc, chrome-plated |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Basket filter
Lithium battery, type CR-P2, 6 V
Tap aerator key
Fastening material
