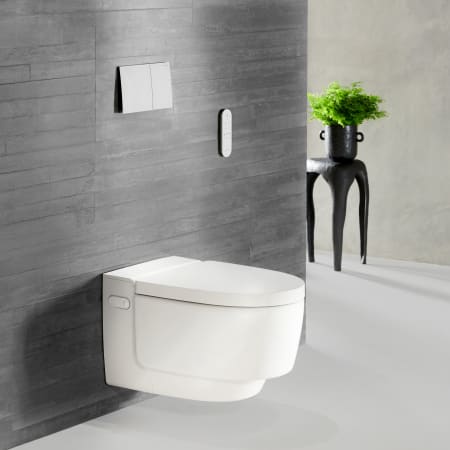

Geberit AquaClean Mera Classic WC complete solution, wall-hung WC

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Additional information

This product is supplied with the Geberit AquaClean descaling agent. This consumable contains classified hazardous substances. Information, instructions and measures for handling hazardous substances safely can be found at www.geberit.com.

Technical data

Protection degree

IPX4

Nominal voltage

230 V AC

Mains frequency

50 Hz

Power consumption standby max.

0.5 W

Flow pressure

0.5–10 bar

Operating temperature

5–40 °C

Water temperature, adjustment range

34–40 °C

Spray time

30–50 s

Load WC seat max.

150 kg

Odour extraction unit

Yes

SoftOpening

Yes

With WC seat ring heating

With orientation light

With dryer functionality

Yes

Application purposes

Click on an application purpose to search more products

For convenient and odourless toilet use For gently cleaning the anal and vaginal areas with water

Characteristics

Click on a characteristic to search more products

Hybrid hot water system with continuous flow heater and storage water heater Anal shower with double-nozzle WhirlSpray shower technology Separate Lady shower nozzle in protected park position Adjustable shower water temperature Spray intensity can be set to five different levels Spray arm can be set to five different positions Adjustable oscillating spray (automatic forward and reverse motion of the spray arm)Automatic pre- and postrinsing of the spray nozzle with fresh water Descaling programme Rimless WC ceramic appliance featuring TurboFlush flush technology Washdown WC with special glaze KeraTect User detection Odour extraction with ceramic honey comb filter can be activated Odour extraction unit with run-on function Dryer can be activated

Dryer air intensity can be set to 5 positions Dryer arm can be extended Adjustable dryer temperature WC seat ring and WC lid with soft-closing mechanism WC lid with SoftOpening Functions and settings via remote control Three user profiles can be programmed Compatible with Geberit Home App Water supply connection on the left, hidden behind the WC ceramic Mains connection with flexible three-core sheathed cable, on the right side, hidden behind the WC ceramic External water supply connection on the left possible with accessories External mains connection with power outlet on the right possible Premounted sound insulation Approval in accordance with (DIN) EN 1717 / (DIN) EN 13077

Scope of delivery

Water supply connection set for Sigma and Omega concealed cisterns 12 cm, installation height 112 cm
Female socket for mains connection
Spray shield
Descaling agent, 125 ml
Cleaning set
Connection set for WC, ø 90 mm
Remote control with wall-mounted case and battery CR2032
Fastening material

The app for various Geberit bathroom products

Geberit Home offers its users digital access to various Geberit products in the bathroom and assists you with operation, configruation and maintenance. The app and its features are free.

Documents

Document type	Documents	Language

Films

Spare parts

Geberit AquaClean Mera WC complete solutions, wall-hung WC

2015 -

#	Art. no.	Description	Remarks
1	243.211.11.1	WC lid for Geberit AquaClean Mera: white / glossy
1.1	245.666.21.1	Set of hinges for WC lid, for Geberit AquaClean Mera
2	243.215.11.1	WC seat ring for Geberit AquaClean Mera Classic: white alpine	Only for Mera Classic

Open detail page

35 Articles
