| Art. no. | 229420009 |
| Colour / surface | white |

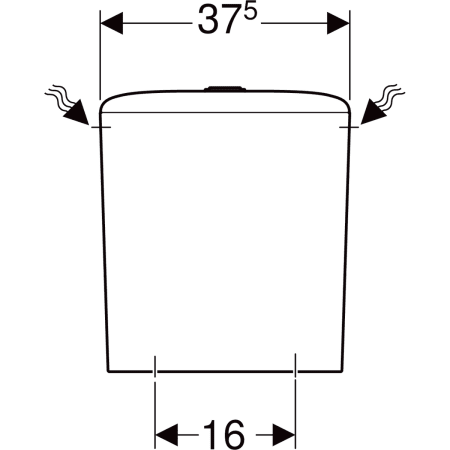

| B | 37.5 cm |

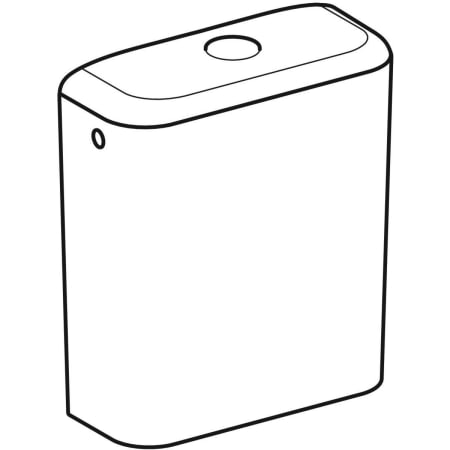

Geberit iCon exposed cistern, close-coupled, dual flush, lateral water supply connection, 4.5 / 3 litre
My list (0)
Technical data
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4.5 l |
Flush volume small, adjustment range 3 l |
Product material Vitreous china |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4.5 l |
Flush volume small, adjustment range 3 l |
Product material Vitreous china |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Environmental product declaration | Ceramic appliance | - | |
Installation instructions | Surface-mounted iCon / iCon Square | - | |
Maintenance manual | Type 290 flush valve | - |
Ceramic appliance
Surface-mounted iCon / iCon Square
Type 290 flush valve
