Additional information
- Actuator plate has to be ordered separately

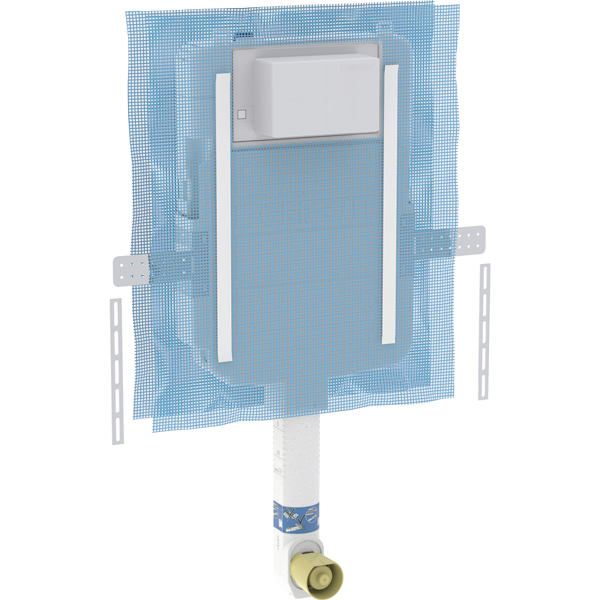

Geberit Alpha concealed cistern 8 cm, 4.5 / 3 litres
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Flush volume, factory setting 4.5 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Plastic |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products

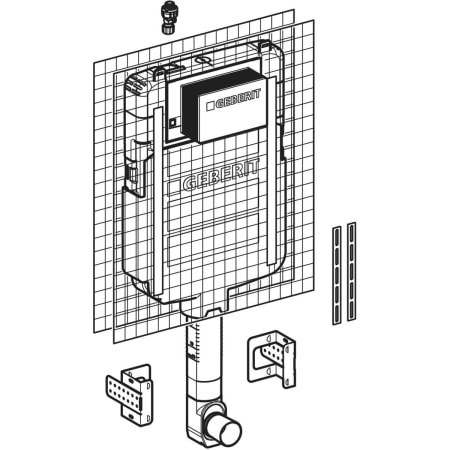

Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Flush bend with recess shells
Flush bend extension, ø 45 mm
Protection plug
2 slotted flat irons
2 mounting shoes
Fastening material
Documents
Your input does not return any results
Films
Spare parts
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 242.414.00.1 | Geberit angle stop valve for Sigma concealed cistern 8 cm | ||
| 1 | 246.175.00.1 | Geberit angle stop valve for Sigma/Delta concealed cistern 12 cm and Sigma/Alpha concealed cistern 8 cm | ||
| 1.1 | 240.298.00.1 | Geberit spindle for angle valve with handwheel, left thread | ||
