Geberit Sigma concealed cistern 12 cm, 4.5 / 3 litres

Thumbnail image
Thumbnail image
Thumbnail image
Thumbnail image
Main gallery image
Main gallery image
Main gallery image
Main gallery image

My list (0)


Articles

Click on the icon with the 3 dots to have more options for each item.

Technical data

Flow pressure

0.1–10 bar

Flush volume, factory setting

4.5 / 3 l

Flush volume large, adjustment range

4 / 4.5 / 6 / 7.5 l

Flush volume small, adjustment range

2–4 l

Product material

Plastic

Application purposes

Click on an application purpose to search more products
For masonry wallsFor installation in part or room-height prewall installationsFor installation in room-height installation wallsFor floor-standing and wall-hung WCs

Characteristics

Click on a characteristic to search more products

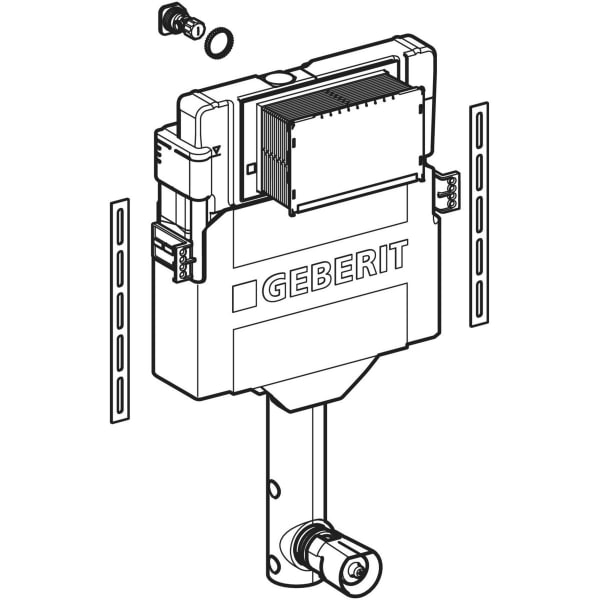

Scope of delivery

  • Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel

  • Protection box for service opening

  • Flush bend with recess shells

  • Protection plug

  • 2 slotted flat irons

  • 2 fixing brackets

  • Fastening material
