Replaces art. no. 150.755.21.1
| Art. no. | 150.755.21.6 |
| Colour / surface | chrome / glossy |
| DN | 40 |

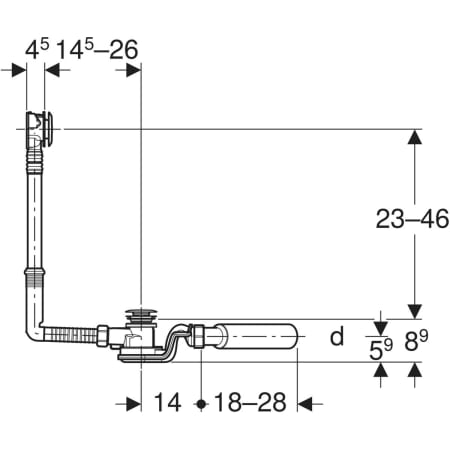

Geberit bathtub drain with PushControl push actuator d52, length 26 cm, with ready-to-fit-set and connection bend
My list (0)
Technical data
Overflow discharge rate 0.65 l/s |
Depth of water seal (mm) 50 mm |
Overflow discharge rate 0.65 l/s |
Depth of water seal (mm) 50 mm |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Waste outlet
Trap
Connection bend 45° made of PE-HD, ø 40 / 50 mm
Ready-to-fit set
Protection box
Fastening material
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Installation instructions | Bathtub drain with PushControl, d52, length 26, with ready-to-fit set and connection bend | - |
Bathtub drain with PushControl, d52, length 26, with ready-to-fit set and connection bend
Films
Other products
Spare parts
| # | Art. no. | Description | Replacement for |
|---|---|---|---|
| 1 | 245.439.21.1 | Geberit waste plug for bathtub drain with push actuator: chrome / glossy | 241.715.11.1, 241.715.21.1, 241.715.45.1, 241.715.46.1, 241.716.11.1, 241.716.21.1, 241.716.45.1, 241.716.46.1 |
| 1.1 | 241.400.00.1 | Geberit lip seal d40 | |
| 2 | 241.717.00.1 | Geberit waste outlet | |
