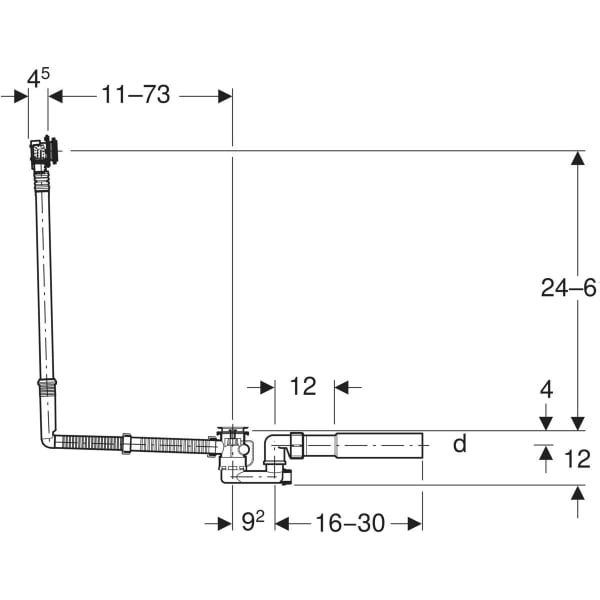

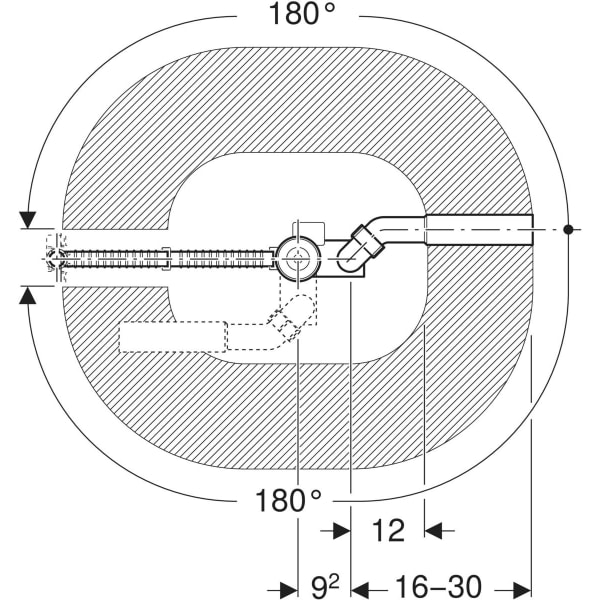

Geberit bathtub drain with turn handle and inlet, d52, length 73 cm
My list (0)
Technical data
Sound class 1 |
Inlet capacity at 3 bar 0.35 l/s |
Overflow discharge rate 0.6 l/s |
Depth of water seal 50 mm |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Overflow head with inlet
Waste outlet
Trap
Elbow tap connector 90° with MasterFix, 1/2", radial-sealing
Connection bend made of PE-HD, ø 40 / 50 mm
Protection box
Fastening material
To order additionally
Ready-to-fit set
Documents
Your input does not return any results
Spare parts
Bathtub drains with turn handle actuation and inlet, d52
Bathtub drains with turn handle actuation and inlet, d52
1999 - 2023
| # | Art. no. | Description |
|---|---|---|
| 1 | 241.717.00.1 | Geberit waste outlet |
| 2 | 854.454.00.1 | Geberit connection bend with union nut made of PE: d=40–50mm |
| 2.1 | 241.995.00.1 | Geberit compression joint |
7 Articles
| # | Art. no. | Description |
|---|---|---|
| 1 | 241.717.00.1 | Geberit waste outlet |
| 2 | 854.454.00.1 | Geberit connection bend with union nut made of PE: d=40–50mm |
| 2.1 | 241.995.00.1 | Geberit compression joint |
10 Articles
