Logo for geberit brand

XC

Wall-mounted, mains operation

Geberit Piave washbasin tap, wall-mounted, mains operation, for concealed function box

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.
116.262.14.5
Colour / surface

black matt / easy-to-clean coated

Mixer

with mixer

Art. no.
116.262.21.5
Colour / surface

chrome / glossy

Mixer

with mixer

Art. no.
116.262.SN.5
Colour / surface

stainless steel look / brushed, easy-to-clean coated

Mixer

with mixer

Art. no.
116.282.14.5
Colour / surface

black matt / easy-to-clean coated

Mixer

with mixer

Art. no.
116.282.21.5
Colour / surface

chrome / glossy

Mixer

with mixer

Art. no.
116.282.SN.5
Colour / surface

stainless steel look / brushed, easy-to-clean coated

Mixer

with mixer

Technical data

Degree of protection

IPX4

Nominal voltage

110–240 V AC

Mains frequency

50–60 Hz

Operating voltage

4.5 V DC

Operating pressure

0.5–10 bar

Differentiated pressure CW/WW max.

1.5 bar

Water test pressure max.

16 bar

Test pressure air / inert gas max.

3 bar

Ambient temperature

1–40 °C

Storage temperature

-20 – +70 °C

Water temperature short-term max.

90 °C

Flow rate at 300 kPa / 3 bar

1.3 l/min

Interval flush time, factory setting

5 s

Product material

Brass / plastic

Application purposes

Click on an application purpose to search more products

For extracting tap waterFor public and semipublic areasFor installation in Geberit elements for washbasins, wall-mounted tap with concealed function boxFor connecting cold and hot water (only for model with mixer or thermostatic mixer)
For connecting cold or mixed water (only for model without mixer)Suitable for use with stainless steel sinksModel without mixer suitable for combination with continuous flow heater, see technical data sheet "Washbasin taps with continuous flow heaters"For panelling thickness 10–50 mm

Characteristics

Click on a characteristic to search more products

Tap group I in accordance with DIN 4109Infrared user detectionVandal-resistantTemperature presetting via mixer (only for models with mixer or thermostatic mixer)Not possible to set just hot water or just cold water (only for model with mixer or thermostatic mixer)Device settings and operation with mobile device via integrated Bluetooth® interfaceFunctions can be set and queried with the Geberit Service Handy
Compatible with Geberit Control AppWired networkable with Geberit gateway via GEBUS converterWirelessly connectable with Geberit Gateway via Bluetooth®Compatible with Geberit ConnectWith integrated check valveFunctional unit with built-in basket filtersComponents in contact with drinking water lead-free

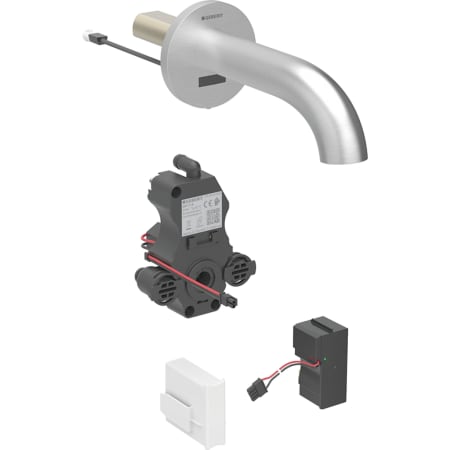

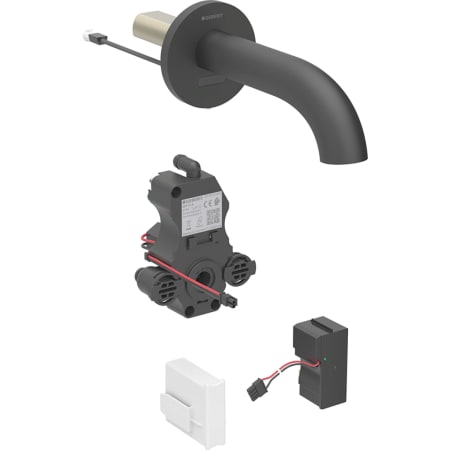

Scope of delivery

  • Washbasin tap

  • IR sensor with connection cable

  • Control electronics

  • Functional unit

  • Power supply unit

  • Tap aerator key

  • Fastening material

To order additionally

  • Geberit element for washbasin

  • Cover plate for concealed function box

Geberit Control – The app for professional work on Geberit products in public spaces

Geberit Control offers users digital access to Geberit products for simple and efficient management of sanitary facilities by facility managers and plumbers. All functions in the app are free of charge.

Apple app store logo
Google app store logo
Mobile app screenshots

Accessories

Geberit extension set for Piave and Brenta washbasin taps, wall-mounted, with concealed function box

For washbasin taps

Geberit extension set for Piave and Brenta washbasin taps, wall-mounted, with concealed function box

244.622.00.1

Geberit sealing set for Piave and Brenta washbasin taps, wall-mounted, with concealed function box

For washbasin taps

Geberit sealing set for Piave and Brenta washbasin taps, wall-mounted, with concealed function box

116.422.00.1

Geberit tap aerator for Piave and Brenta washbasin taps

For washbasin taps

Geberit tap aerator for Piave and Brenta washbasin taps

243.625.00.1

Can be combined with

Geberit GIS crossbar for electronic wall-mounted tap with concealed function box

Geberit GIS

Geberit GIS crossbar for electronic wall-mounted tap with concealed function box

461.146.00.1

Geberit Duofix element for washbasin, 130 cm, electronic wall-mounted tap with concealed function box

Geberit Duofix

Geberit Duofix element for washbasin, 130 cm, electronic wall-mounted tap with concealed function box

111.560.00.2

Replaces art. no. 111.560.00.1

Geberit Duofix element for washbasin, 130 cm, electronic wall-mounted tap with concealed function box, with concealed trap

Geberit Duofix

Geberit Duofix element for washbasin, 130 cm, electronic wall-mounted tap with concealed function box, with concealed trap

111.562.00.2

Replaces art. no. 111.562.00.1

Geberit Duofix element, 130 cm, for electronic wall-mounted tap with concealed function box, for ablution

Geberit Duofix

Geberit Duofix element, 130 cm, for electronic wall-mounted tap with concealed function box, for ablution

111.271.00.2

Replaces art. no. 111.271.00.1
