Spare parts for: Renovation sets for urinal flush control, cover plate or actuator plate 18 x 21 cm
2018 -
Brand
Geberit
| # | Art. no. | Description |
|---|---|---|
| 1 | 243.047.00.1 | Geberit mounting frame for urinal flush control with pneumatic flush actuation, Highline actuator plate |
| 3 | 243.792.00.1 | Geberit reducer G 3/4” / DN 8 |
| 4 | 243.795.00.1 | Geberit ball valve |
| 5 | 243.796.00.1 | Geberit reinforced braided hose for renovation set, for urinal flush control units |
| 6 | 116.068.00.1 | Geberit wall fixing, complete, for drywall construction |
| 7 | 243.544.00.1 | Geberit fastening material for urinal |
| 8 | 116.083.00.1 | Geberit Selva urinal with integrated control, battery operation: T=37cm, Outlet=to the rear, Inlet=rear, white |
| 8 | 116.084.00.1 | Geberit Selva urinal with integrated control, generator operation: T=37cm, Outlet=to the rear, Inlet=rear, white |
| 9 | 116.143.00.1 | Geberit Tamina urinal with integrated control, battery operation: T=37cm, Outlet=to the rear, Inlet=rear, white |
| 9 | 116.144.00.1 | Geberit Tamina urinal with integrated control, generator operation: T=37cm, Outlet=to the rear, Inlet=rear, white |
Geberit mounting frame for urinal flush control with pneumatic flush actuation, Highline actuator plate
#
1
Art. no.
243.047.00.1
Geberit reducer G 3/4” / DN 8
#
3
Art. no.
243.792.00.1
Geberit ball valve
#
4
Art. no.
243.795.00.1
Geberit reinforced braided hose for renovation set, for urinal flush control units
#
5
Art. no.
243.796.00.1
Geberit wall fixing, complete, for drywall construction
#
6
Art. no.
116.068.00.1
Geberit fastening material for urinal
#
7
Art. no.
243.544.00.1
Geberit Selva urinal with integrated control, battery operation: T=37cm, Outlet=to the rear, Inlet=rear, white
#
8
Art. no.
116.083.00.1
Geberit Selva urinal with integrated control, generator operation: T=37cm, Outlet=to the rear, Inlet=rear, white
#
8
Art. no.
116.084.00.1
Geberit Tamina urinal with integrated control, battery operation: T=37cm, Outlet=to the rear, Inlet=rear, white
#
9
Art. no.
116.143.00.1
Geberit Tamina urinal with integrated control, generator operation: T=37cm, Outlet=to the rear, Inlet=rear, white
#
9
Art. no.
116.144.00.1
- Only the listed articles are available
Valid for articles
Characteristics
Year of manufacture from 2018 |
Related spare parts
Urinal flush controls IR, battery operation, for HyTronic Highline
Urinal flush controls IR, battery operation, for HyTronic Highline
1989 - 2001
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.043.00.1 | Geberit Highline cover plate: brushed, Material designation=Stainless steel | ||
| 1 | 240.043.11.1 | Geberit Highline cover plate: white alpine, Material designation=Stainless steel | ||
| 2 | 243.047.00.1 | Geberit mounting frame for urinal flush control with pneumatic flush actuation, Highline actuator plate | ||
17 Articles

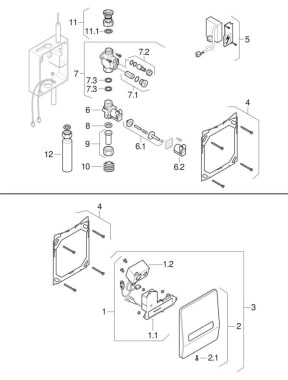

Urinal flush controls IR, mains operation, for HyTronic Highline
Urinal flush controls IR, mains operation, for HyTronic Highline
1980 - 1999
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.841.00.1 | Geberit conversion set IR with cover plate, for urinal flush control, electronic, Highline | 115.555.00.1 | Fastening plate art. no. 243.047.00.1 absolutely required |
| 1.1 | 240.043.00.1 | Geberit Highline cover plate: brushed, Material designation=Stainless steel | After conversion to infrared, mains | |
| 1.1 | 240.043.11.1 | Geberit Highline cover plate: white alpine, Material designation=Stainless steel | After conversion to infrared, mains | |
18 Articles

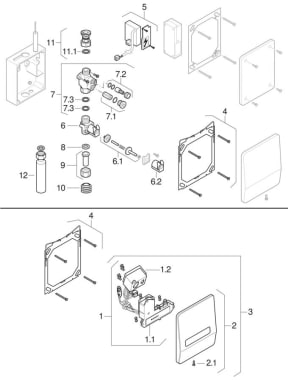

Urinal flush conductive controls, mains operation, for HyTronic Highline
Urinal flush conductive controls, mains operation, for HyTronic Highline
1983 - 2001
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.840.00.1 | Geberit conversion set IR, complete, for urinal flush control, electronic, Highline | ||
| 1.1 | 240.819.00.1 | Geberit slanter 24 V AC | After conversion to infrared, mains | |
| 1.2 | 240.524.00.1 | Geberit IR electronics for urinal flush control with electronic flush actuation | After conversion to infrared, mains | |
19 Articles
Urinal flush controls IR, battery operation, for HyTronic Highline
Urinal flush controls IR, battery operation, for HyTronic Highline
1994 - 2006
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.043.00.1 | Geberit Highline cover plate: brushed, Material designation=Stainless steel | ||
| 1 | 240.043.11.1 | Geberit Highline cover plate: white alpine, Material designation=Stainless steel | ||
| 2 | 243.047.00.1 | Geberit mounting frame for urinal flush control with pneumatic flush actuation, Highline actuator plate | ||
17 Articles
Urinal flush controls with flushing cistern, mains operation
Urinal flush controls with flushing cistern, mains operation
1981 - 2004
| # | Art. no. | Description | Remarks |
|---|---|---|---|
| 4.1 | 240.560.11.1 | Geberit cover plate made of die-cast zinc: white alpine | 16 x 16 cm |
| 4.1 | 240.560.21.1 | Geberit cover plate made of die-cast zinc: bright chrome-plated | 16 x 16 cm |
| 4.1 | 240.560.46.1 | Geberit cover plate made of die-cast zinc: matt chrome-plated | 16 x 16 cm |
6 Articles
Urinal flush controls with pneumatic flush actuation, actuator plate Highline
Urinal flush controls with pneumatic flush actuation, actuator plate Highline
1994 -
| # | Art. no. | Description |
|---|---|---|
| 1 | 240.121.00.1 | Geberit actuator plate for urinal flush control with pneumatic flush actuation, Highline actuator plate: brushed |
| 1.1 | 240.048.00.1 | Geberit actuator button for urinal flush control with pneumatic flush actuation, Highline actuator plate: anthracite RAL 7016 |
| 1.1 | 240.048.11.1 | Geberit actuator button for urinal flush control with pneumatic flush actuation, Highline actuator plate: white alpine |
14 Articles
Urinal flush controls with radar, mains operation, for HyTronic Highline
Urinal flush controls with radar, mains operation, for HyTronic Highline
1996 - 2008
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 243.009.00.1 | Geberit power supply unit for urinal | 230 V / 24 V | |
| 2 | 243.047.00.1 | Geberit mounting frame for urinal flush control with pneumatic flush actuation, Highline actuator plate | ||
| 4 | 243.008.00.1 | Geberit sleeve | ||
14 Articles

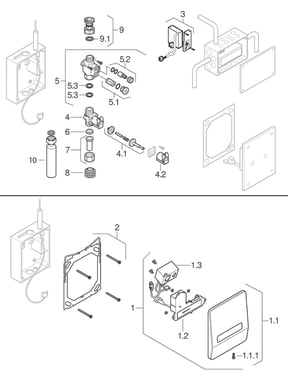

Urinal flush controls IR, mains operation, for HyTronic Highline
Urinal flush controls IR, mains operation, for HyTronic Highline
1987 - 2008
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.840.00.1 | Geberit conversion set IR, complete, for urinal flush control, electronic, Highline | Conversion to infrared, mains | |
| 1.1 | 240.819.00.1 | Geberit slanter 24 V AC | After conversion to infrared mains, with glass pane | |
| 1.2 | 240.524.00.1 | Geberit IR electronics for urinal flush control with electronic flush actuation | After conversion to infrared, mains | |
19 Articles
