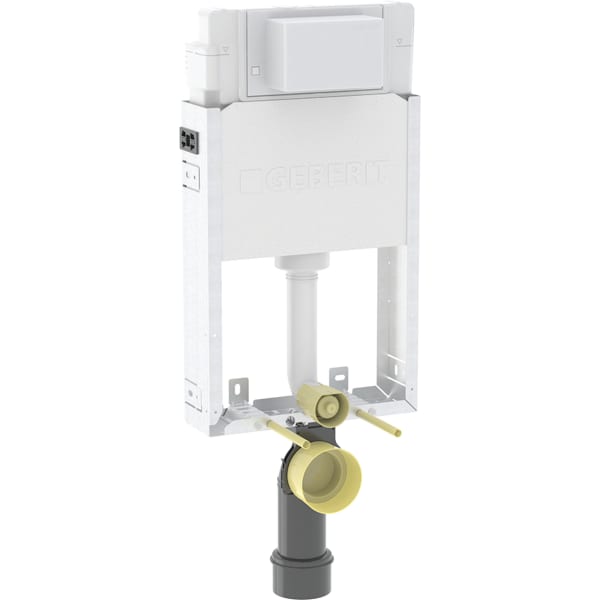

Geberit Kombifix element for wall-hung WC, 106 cm, with Alpha concealed cistern 12 cm

Thumbnail image
Thumbnail image
Thumbnail image
Thumbnail image
Main gallery image
Main gallery image
Main gallery image
Main gallery image

My list (0)


Articles

Click on the icon with the 3 dots to have more options for each item.

Technical data

Flow pressure

0.1-10 bar

Flush volume, factory setting

6 and 3 l

Flush volume large, adjustment range

4 / 4.5 / 6 / 7.5 l

Flush volume small, adjustment range

2-4 l

Application purposes

Click on an application purpose to search more products

For masonry wallsFor installation in part or room-height prewall installationsFor wall-hung WCs with connection dimensions in accordance with EN 33:2011For dual flush

Characteristics

Click on a characteristic to search more products

Scope of delivery

  • Angle stop valve R 1/2", compatible with MF, with adapter ring

  • Protection box for service opening

  • Connection set for WC, ø 90 mm

  • Connection bend made of PE-HD, ø 90 mm

  • Adapter socket made of PE-HD, ø 90 / 110 mm

  • 2 protection plugs

  • 2 threaded rods M12

  • Fastening material
