Replaces art. no. 110.259.00.1
| Art. no. | 110.011.00.1 |
| B | 42 cm |
| H | 98 cm |
Additional information
- Actuator plate has to be ordered separately

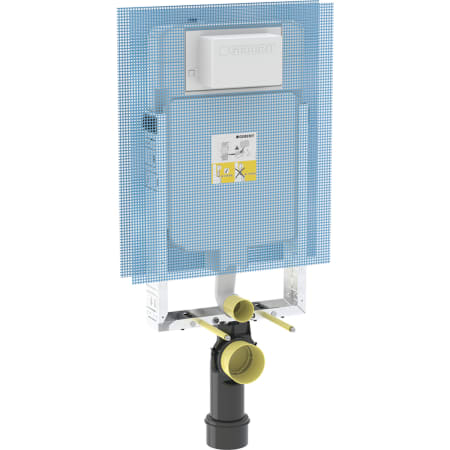

Geberit Kombifix element for wall-hung WC, 98 cm, with Omega concealed cistern 12 cm
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Flow rate at 300 kPa / 3 bar 0.16 l/s |
Product material Steel |
Height-adjustable No |
Flow pressure 0.1–10 bar |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Flow rate at 300 kPa / 3 bar 0.16 l/s |
Product material Steel |
Height-adjustable No |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Powder-coated mounting frameMounting frame with four fixing bracketsAdjustable installation depth, 12–20.5 cmFastening for connection bend can be mounted without tools from frontConcealed cistern with top or front actuationConcealed cistern, fully insulated against condensation
Immediate post flush possible with factory settingTool-free installation and maintenance work on concealed cisternWater supply connection on the left or rear leftProtection box for service opening can be cut to lengthWith conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cableFastening option for electrical connection
Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Connection set for WC, ø 90 mm
Connection bend made of PE-HD, ø 90 mm
Adapter socket made of PE-HD, ø 90 / 110 mm
2 protection plugs
2 threaded rods M12
Fastening material
