With electronic flush actuation, mains operation

Geberit urinal flush control with electronic flush actuation, mains operation, for cover plate Type 40

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.

116.079.00.1

Technical data

Degree of protection	IP45	Degree of protection IP45
Nominal voltage	110–240 V AC	Nominal voltage 110–240 V AC
Operating voltage	4.5 V DC	Operating voltage 4.5 V DC
Mains frequency	50–60 Hz	Mains frequency 50–60 Hz
Flow pressure	1–8 bar	Flow pressure 1–8 bar
Water test pressure max.	16 bar	Water test pressure max. 16 bar
Test pressure air / inert gas max.	3 bar	Test pressure air / inert gas max. 3 bar

Flow rate at 100 kPa / 1 bar without flow limiter	0.3 l/s	Flow rate at 100 kPa / 1 bar without flow limiter 0.3 l/s
Flow rate at 100 kPa / 1 bar with flow limiter	0.18 l/s	Flow rate at 100 kPa / 1 bar with flow limiter 0.18 l/s
Interval flush time, factory setting	5 s	Interval flush time, factory setting 5 s
Detection time, factory setting	7 s	Detection time, factory setting 7 s
Flush time, adjustment range	1–15 s	Flush time, adjustment range 1–15 s
Flush time, factory setting	1 s	Flush time, factory setting 1 s

Degree of protection	IP45	Degree of protection IP45
Nominal voltage	110–240 V AC	Nominal voltage 110–240 V AC
Operating voltage	4.5 V DC	Operating voltage 4.5 V DC
Mains frequency	50–60 Hz	Mains frequency 50–60 Hz
Flow pressure	1–8 bar	Flow pressure 1–8 bar
Water test pressure max.	16 bar	Water test pressure max. 16 bar
Test pressure air / inert gas max.	3 bar	Test pressure air / inert gas max. 3 bar
Flow rate at 100 kPa / 1 bar without flow limiter	0.3 l/s	Flow rate at 100 kPa / 1 bar without flow limiter 0.3 l/s
Flow rate at 100 kPa / 1 bar with flow limiter	0.18 l/s	Flow rate at 100 kPa / 1 bar with flow limiter 0.18 l/s
Interval flush time, factory setting	5 s	Interval flush time, factory setting 5 s
Detection time, factory setting	7 s	Detection time, factory setting 7 s
Flush time, adjustment range	1–15 s	Flush time, adjustment range 1–15 s
Flush time, factory setting	1 s	Flush time, factory setting 1 s

Application purposes

Click on an application purpose to search more products

For automatic flush actuation of urinals For Geberit installation elements for urinal with front actuation For installation in installation sets for Geberit urinal flush controls (from year of manufacture 2009)

Characteristics

Click on a characteristic to search more products

Flushvolume preset to 0.5 l per flush Water-saving hybrid mode can be set Adjustable interval flush Preflush can be set Power failure control unit Valve-closing function when power fails Functions can be set and queried with the Geberit Service Handy

Device settings and operation with mobile device via integrated Bluetooth® interface Compatible with Geberit Control App Wired networkable with Geberit gateway via GEBUS converter Wirelessly connectable with Geberit Gateway via Bluetooth®Compatible with Geberit Connect Tap group II in accordance with DIN 4109 Components in contact with drinking water lead-free

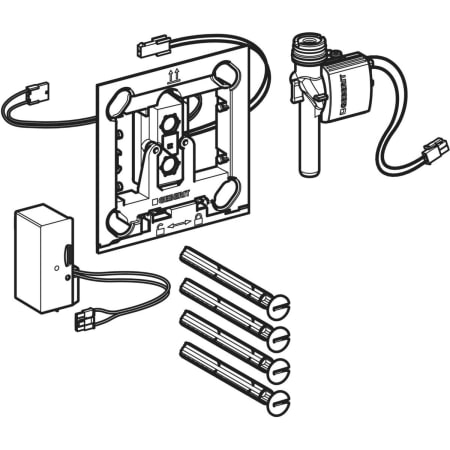

Scope of delivery

Mounting frame
Infrared control, premounted on mounting frame
Solenoid valve
Power supply unit

Fastening material

To order additionally

Cover plate with IR window

Geberit Control – The app for professional work on Geberit products in public spaces

Geberit Control offers users digital access to Geberit products for simple and efficient management of sanitary facilities by facility managers and plumbers. All functions in the app are free of charge.
