Articles
Click on the icon with the 3 dots to have more options for each item.
| Art. no. | 246.192.00.5 |

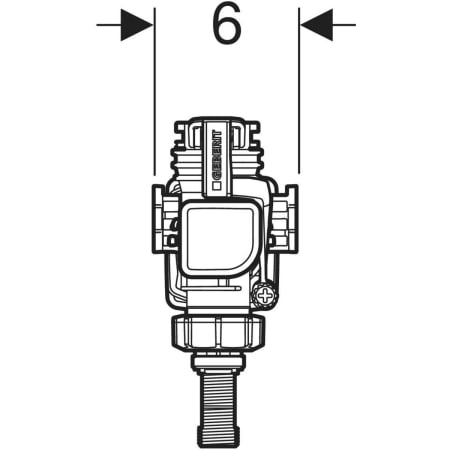

| B | 6 cm |

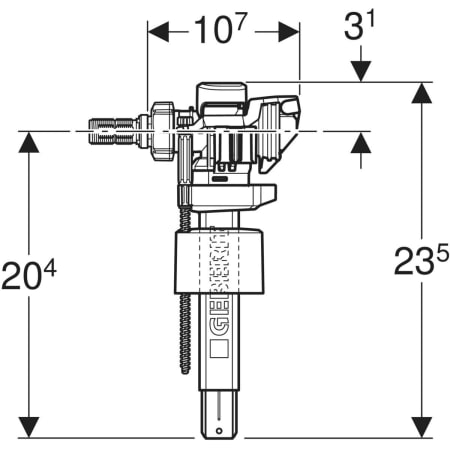

| H | 23 cm |
Geberit Type 383 fill valve, lateral water supply connection, 3/8", nipple made of brass
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Storage temperature ≤ 40 °C |
Flow rate at 50 kPa / 0.5 bar 0.06 l/s |
Flow rate at 300 kPa / 3 bar 0.16 l/s |
Flow pressure 0.1–10 bar |
Storage temperature ≤ 40 °C |
Flow rate at 50 kPa / 0.5 bar 0.06 l/s |
Flow rate at 300 kPa / 3 bar 0.16 l/s |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Filter for nipple / reinforced braided hose types 350 and 380 filling valves
Mounting clip
Fastening material
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Installation instructions | Fill valve type 383 | - | |
Installation notice | Screen type 383 installation note | - |
Fill valve type 383
Screen type 383 installation note
Other products
Spare parts
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.710.00.1 | Geberit connection pipe for types 380 and 383 fill valves: H=10.6cm | ||
| 2 | 245.988.00.1 | Geberit operating part set for type 383 fill valve | ||
| 3 | 294.833.21.1 | Geberit cone screw fitting R 3/8″: chrome / glossy | ||
