Geberit Brenta washbasin tap, deck-mounted, battery operation, with exposed function box

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.	116.174.14.5
Colour / surface	black matt / easy-to-clean coated
Mixer	with mixer

Art. no.	116.174.21.5
Colour / surface	chrome / glossy
Mixer	with mixer

Art. no.	116.174.SN.5
Colour / surface	stainless steel look / brushed, easy-to-clean coated
Mixer	with mixer

Technical data

Battery type	Alkaline (1.5 V AA)	Battery type Alkaline (1.5 V AA)
Degree of protection	IPX4	Degree of protection IPX4
Operating voltage	3 V DC	Operating voltage 3 V DC
Operating pressure	0.5–10 bar	Operating pressure 0.5–10 bar
Differentiated pressure CW/WW max.	1.5 bar	Differentiated pressure CW/WW max. 1.5 bar
Water test pressure max.	16 bar	Water test pressure max. 16 bar
Test pressure air / inert gas max.	3 bar	Test pressure air / inert gas max. 3 bar

Ambient temperature	1–40 °C	Ambient temperature 1–40 °C
Storage temperature	-20 – +70 °C	Storage temperature -20 – +70 °C
Water temperature short-term max.	90 °C	Water temperature short-term max. 90 °C
Flow rate at 300 kPa / 3 bar	1.3 l/min	Flow rate at 300 kPa / 3 bar 1.3 l/min
Interval flush time, factory setting	5 s	Interval flush time, factory setting 5 s
Product material	Brass / plastic	Product material Brass / plastic

Battery type	Alkaline (1.5 V AA)	Battery type Alkaline (1.5 V AA)
Degree of protection	IPX4	Degree of protection IPX4
Operating voltage	3 V DC	Operating voltage 3 V DC
Operating pressure	0.5–10 bar	Operating pressure 0.5–10 bar
Differentiated pressure CW/WW max.	1.5 bar	Differentiated pressure CW/WW max. 1.5 bar
Water test pressure max.	16 bar	Water test pressure max. 16 bar
Test pressure air / inert gas max.	3 bar	Test pressure air / inert gas max. 3 bar
Ambient temperature	1–40 °C	Ambient temperature 1–40 °C
Storage temperature	-20 – +70 °C	Storage temperature -20 – +70 °C
Water temperature short-term max.	90 °C	Water temperature short-term max. 90 °C
Flow rate at 300 kPa / 3 bar	1.3 l/min	Flow rate at 300 kPa / 3 bar 1.3 l/min
Interval flush time, factory setting	5 s	Interval flush time, factory setting 5 s
Product material	Brass / plastic	Product material Brass / plastic

Application purposes

Click on an application purpose to search more products

For extracting tap water For public and semipublic areas For installation in washbasins or washtops For connecting cold and hot water (only for model with mixer or thermostatic mixer)

For connecting cold or mixed water (only for model without mixer)Suitable for use with stainless steel sinks Model without mixer suitable for combination with continuous flow heater, see technical data sheet "Washbasin taps with continuous flow heaters"

Characteristics

Click on a characteristic to search more products

Tap group I in accordance with DIN 4109 Infrared user detection Vandal-resistant Temperature presetting via mixer (only for models with mixer or thermostatic mixer)Not possible to set just hot water or just cold water (only for model with mixer or thermostatic mixer)Warning when the battery is low Functions can be set and queried with the Geberit Service Handy

Device settings and operation with mobile device via integrated Bluetooth® interface Compatible with Geberit Control App Wired networkable with Geberit gateway via GEBUS converter Wirelessly connectable with Geberit Gateway via Bluetooth®Compatible with Geberit Connect With integrated check valve Functional unit with built-in basket filters

Scope of delivery

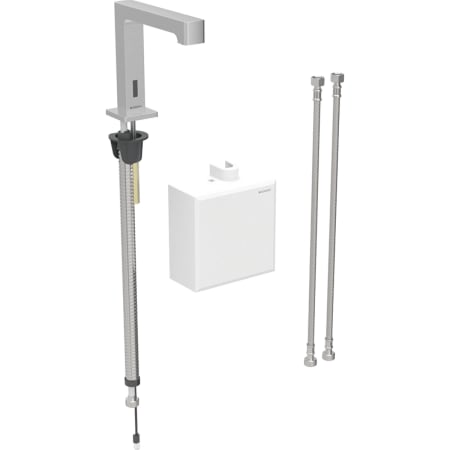

Washbasin tap with IR sensor and connection hose
Exposed function box with control electronics, functional unit and battery compartment
Reinforced braided hoses 3/8"
Tap aerator key

Fastening material
