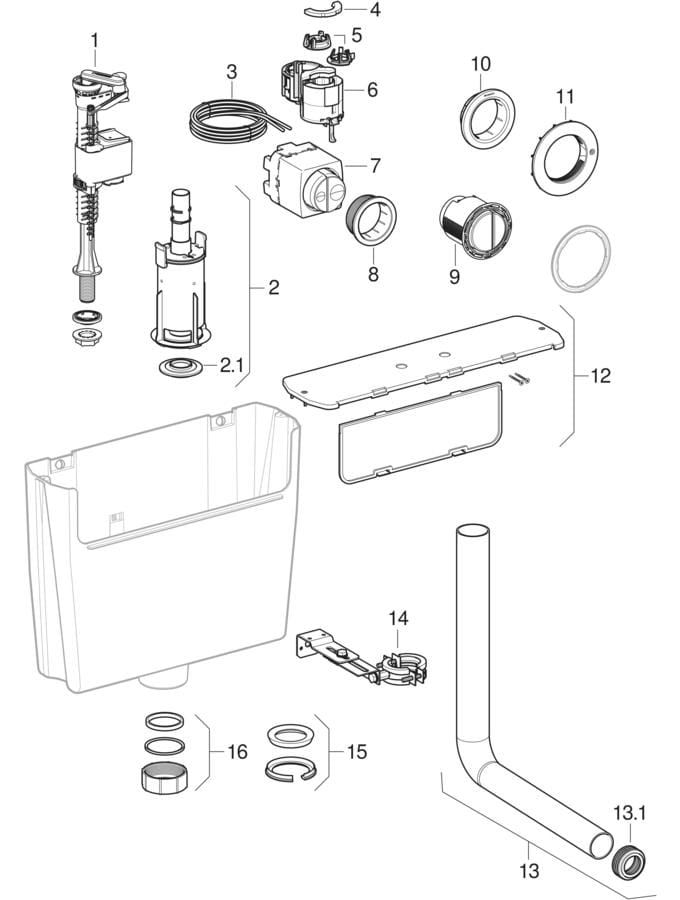

Spare parts for: WC flush controls with pneumatic flush actuation, single flush, with locked nuts, concealed actuator, for furniture
1985 -
Brand
Geberit
Geberit flushing device for WC flush control with pneumatic flush actuation, single flush
#
1
Art. no.
240.573.00.1
Remarks
From year of manufacture 1999
Geberit flushing device flange for flush valve, dual flush: white alpine
#
1.1
Art. no.
880.328.11.1
Geberit actuator for WC flush control with pneumatic flush actuation, single flush: white alpine
#
2
Art. no.
241.199.11.1
Geberit actuator for WC flush control with pneumatic flush actuation, single flush: bright chrome-plated
#
2
Art. no.
241.199.21.1
Geberit conversion set for bellows unit for pneumatic actuator
#
2.1
Art. no.
240.794.00.1
Geberit set of pneumatic hoses, d4/d5
#
3
Art. no.
256.000.00.1
Geberit conversion set for flush valve, pneumatic, single flush
#
4
Art. no.
240.004.00.1
Remarks
Years of manufacture 1985–1998
- Only the listed articles are available
Valid for articles
Characteristics
Year of manufacture from 1985 |
Range HyTouch |
Related spare parts
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.269.00.1 | Geberit water supply connection with integrated angle stop valve | 240.177.00.1 | |
| 1 | 240.847.00.1 | Geberit water supply connection with integrated angle stop valve, resistant to seawater | ||
| 1.1 | 240.298.00.1 | Geberit spindle for angle valve with handwheel, left thread | For use with hand wheel | |
33 Articles
| # | Art. no. | Description | Remarks |
|---|---|---|---|
| 1 | 216.599.00.1 | Geberit angle stop valve for concealed cisterns UP170 / 110.700 / 10.400 / 10.700 / 10.800 / 110.620 / NUVO / UP130 / 110.800 | |
| 2 | 240.114.00.1 | Geberit universal flush valve for concealed cistern | |
| 2.1 | 241.167.00.1 | Geberit flush valve bracket for flush valves | |
23 Articles
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 241.324.00.1 | Geberit angle stop valve, resistant to seawater | ||
| 1 | 241.475.00.1 | Geberit angle stop valve for Delta concealed cisterns 12 / 8 cm | ||
| 1 | 242.414.00.1 | Geberit angle stop valve for Sigma concealed cistern 8 cm | For operation with hand wheel | |
28 Articles
Twinline concealed cisterns 8 cm (UP170, 110.700)
Twinline concealed cisterns 8 cm (UP170, 110.700)
1989 - 2016
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 216.599.00.1 | Geberit angle stop valve for concealed cisterns UP170 / 110.700 / 10.400 / 10.700 / 10.800 / 110.620 / NUVO / UP130 / 110.800 | ||
| 1 | 240.644.00.1 | Geberit angle stop valve for concealed cisterns, resistant to seawater | ||
| 2 | 240.233.00.1 | Geberit extension set for protection box of service opening | ||
33 Articles
| # | Art. no. | Description |
|---|---|---|
| 1 | 241.475.00.1 | Geberit angle stop valve for Delta concealed cisterns 12 / 8 cm |
| 2 | 240.921.00.1 | Geberit type 380 reinforced hose for concealed cistern: DN=8, L=33.3cm, G=3/8″ |
| 2 | 241.854.00.1 | Geberit type 380 reinforced hose, dezincification-resistant, for concealed cistern |
23 Articles
Twinline concealed cisterns 12 cm (UP130, 110.800)
Twinline concealed cisterns 12 cm (UP130, 110.800)
1988 - 2014
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.233.00.1 | Geberit extension set for protection box of service opening | ||
| 2 | 889.246.00.1 | Geberit fastening bracket for distance bolts | ||
| 3 | 216.599.00.1 | Geberit angle stop valve for concealed cisterns UP170 / 110.700 / 10.400 / 10.700 / 10.800 / 110.620 / NUVO / UP130 / 110.800 | ||
34 Articles
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 281.221.00.1 | Geberit Type 380AG fill valve, bottom water supply connection, 1/2", nipple made of plastic | ||
| 2 | 241.415.00.1 | Geberit flush valve for low-height concealed cistern | ||
| 2.1 | 816.418.00.1 | Geberit flat gasket for flush valve for exposed and concealed cistern: d=63mm, di=32mm | ||
19 Articles
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 3 | 240.269.00.1 | Geberit water supply connection with integrated angle stop valve | 240.177.00.1 | |
| 3 | 240.847.00.1 | Geberit water supply connection with integrated angle stop valve, resistant to seawater | ||
| 3.1 | 240.298.00.1 | Geberit spindle for angle valve with handwheel, left thread | For use with hand wheel | |
31 Articles
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.269.00.1 | Geberit water supply connection with integrated angle stop valve | 240.177.00.1 | |
| 1.1 | 240.298.00.1 | Geberit spindle for angle valve with handwheel, left thread | ||
| 1.2 | 241.857.00.1 | Geberit counternut made of plastic | ||
35 Articles
Kappa concealed cisterns 15 cm (UP120, Artline), also for PEX connector
Kappa concealed cisterns 15 cm (UP120, Artline), also for PEX connector
1998 - 2025
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.206.00.1 | Geberit protection plate for Kappa concealed cistern 15 cm | ||
| 2 | 240.079.00.1 | Geberit support block for Artline concealed cistern | ||
| 3 | 240.705.00.1 | Geberit Type 380 fill valve, lateral water supply connection, 3/8", nipple made of brass: H=24.3cm | ||
28 Articles
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.269.00.1 | Geberit water supply connection with integrated angle stop valve | 240.177.00.1 | |
| 1 | 240.847.00.1 | Geberit water supply connection with integrated angle stop valve, resistant to seawater | ||
| 1.1 | 240.298.00.1 | Geberit spindle for angle valve with handwheel, left thread | For use with hand wheel | |
26 Articles
