Replaces art. no. 150.525.21.1
| Art. no. | 150.525.21.6 |
| Colour / surface | chrome / glossy |
| DN | 40 |

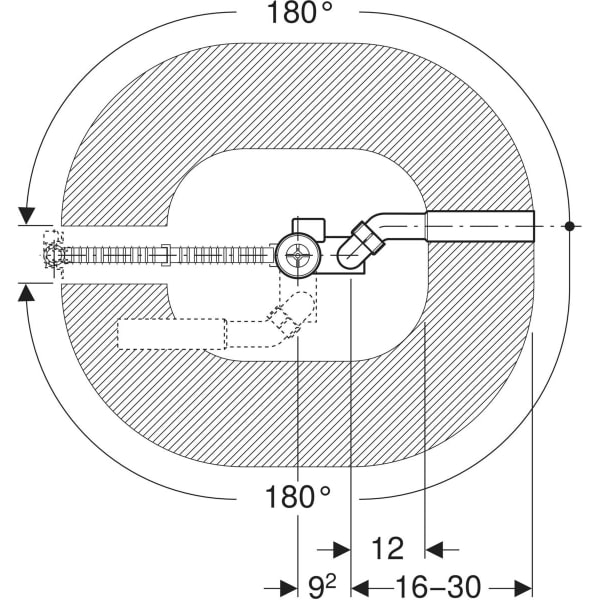

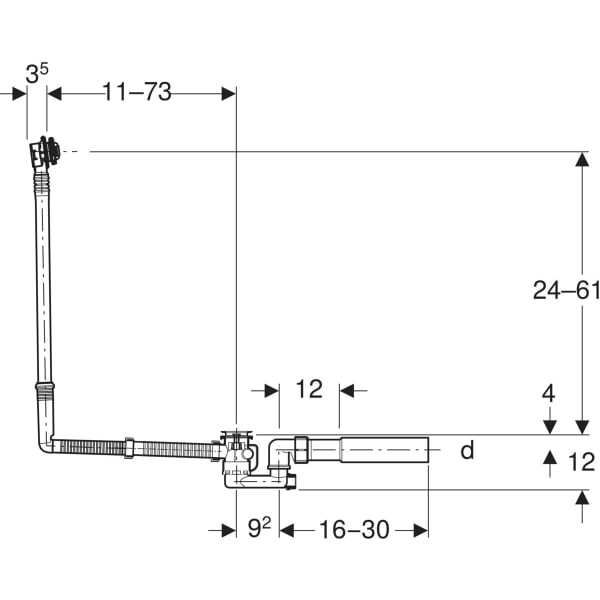

Geberit bathtub drain with turn handle, d52, length 73 cm, with ready-to-fit-set
My list (0)
Technical data
Overflow discharge rate 0.6 l/s |
Depth of water seal (mm) 50 mm |
Overflow discharge rate 0.6 l/s |
Depth of water seal (mm) 50 mm |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Ready-to-fit set
Waste outlet
Trap
Connection bend made of PE-HD, ø 40 / 50 mm
Protection box
Fastening material
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Installation instructions | Bathtub drain with turn handle installation set | - | |
Installation instructions | Ready-to-fit set for bathtub drain with turn handle | - |
Bathtub drain with turn handle installation set
Ready-to-fit set for bathtub drain with turn handle
Other products
Spare parts
| # | Art. no. | Description |
|---|---|---|
| 1 | 241.717.00.1 | Geberit waste outlet |
| 2 | 854.454.00.1 | Geberit connection bend with union nut made of PE: d=40–50mm |
| 2.1 | 241.995.00.1 | Geberit compression joint |
10 Articles
| # | Art. no. | Description | Replacement for |
|---|---|---|---|
| 1 | 241.717.00.1 | Geberit waste outlet | |
| 2 | 854.454.00.1 | Geberit connection bend with union nut made of PE: d=40–50mm | |
| 2.1 | 241.995.00.1 | Geberit compression joint | |
10 Articles
