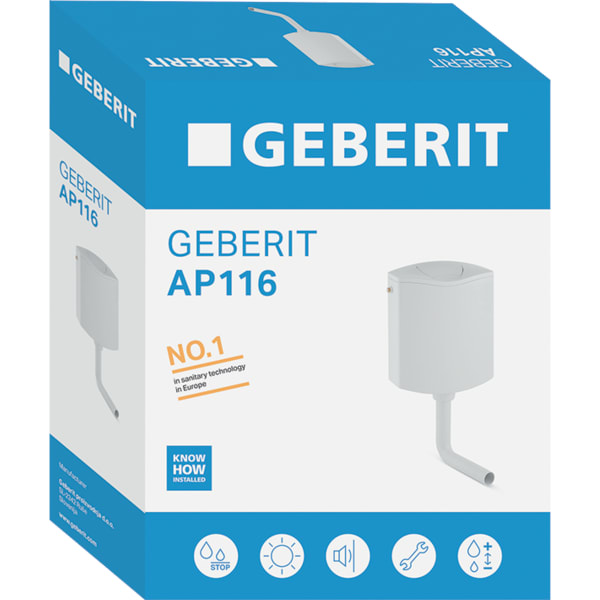

Geberit AP116 exposed cistern, dual flush
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Storage temperature ≤ 40 °C |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 6–7.5 l |
Flush volume small, adjustment range 3–4.5 l |
Product material ABS |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Reinforced braided hose 3/8"
Copper pipe, bent
Flush bend 90° made of ABS, ø 50 / 44 mm, 23 x 23 cm
Sleeve made of EPDM, ø 44 / 55 mm
Fastening material
Documents
Your input does not return any results
Spare parts
| # | Art. no. | Description | Replacement for |
|---|---|---|---|
| 1 | 238.085.11.1 | Geberit cistern lid for exposed cistern AP116, with insert for in-cistern block: white alpine | |
| 2 | 238.082.11.1 | Geberit cistern lid for exposed cistern AP116: white alpine | |
| 3 | 238.116.00.1 | Geberit flush valve for exposed cistern AP116 | |
10 Articles
