XD

With pneumatic flush actuation

Geberit urinal flush control with pneumatic flush actuation, Type 40 actuator plate, square

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

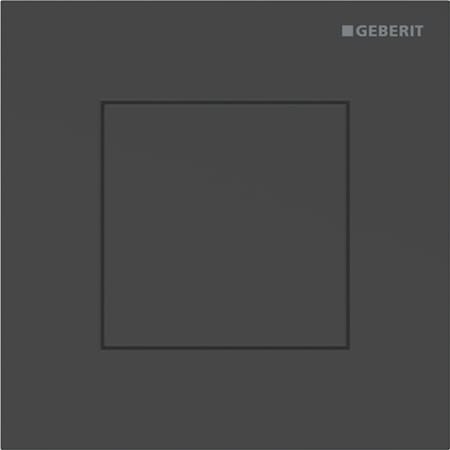

Art. no.
116.217.14.1
Colour / surface

Plate, Button: black matt / easy-to-clean coated

Product material

Stainless steel

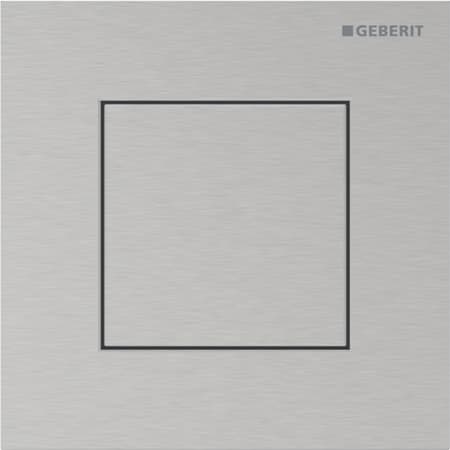

Art. no.
116.217.FW.1
Colour / surface

Plate, Button: brushed, easy-to-clean coated

Product material

Stainless steel

Art. no.
116.217.JK.1
Colour / surface

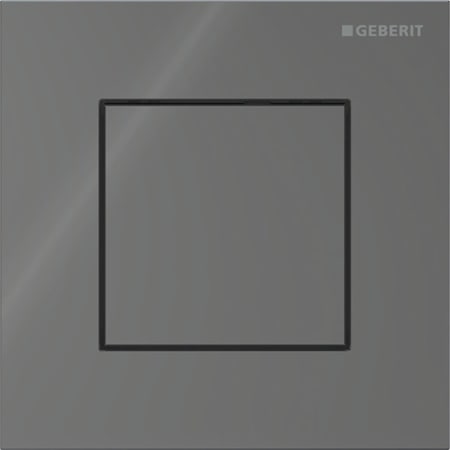

Plate, Button: lava / glossy glass

Product material

Glass

Art. no.
116.217.JL.1
Colour / surface

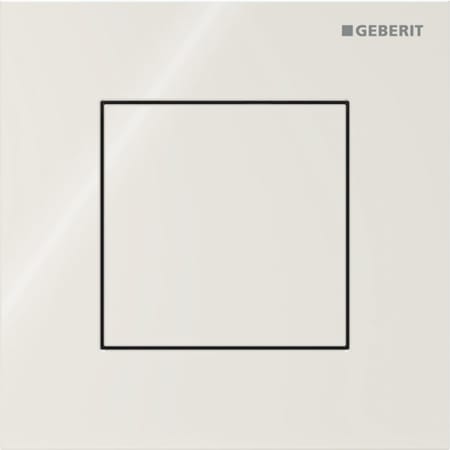

Plate, Button: sand grey / glossy glass

Product material

Glass

Art. no.
116.217.JT.1
Colour / surface

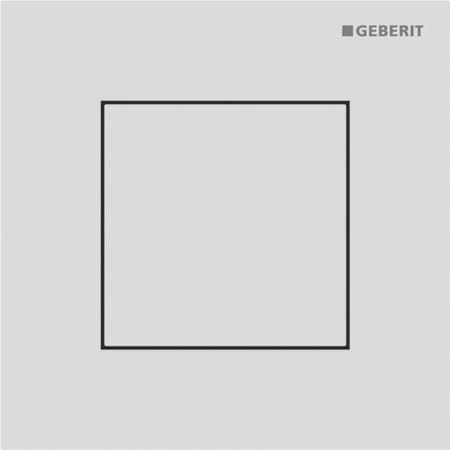

Plate, Button: white matt / easy-to-clean coated

Product material

Stainless steel

Art. no.
116.217.QB.1
Colour / surface

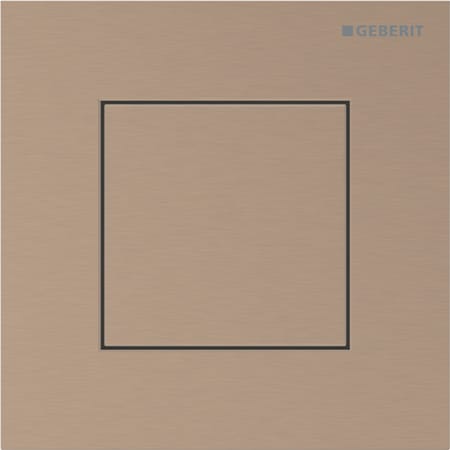

Plate, Button: red gold / brushed, easy-to-clean coated

Product material

Stainless steel

Art. no.
116.217.QD.1
Colour / surface

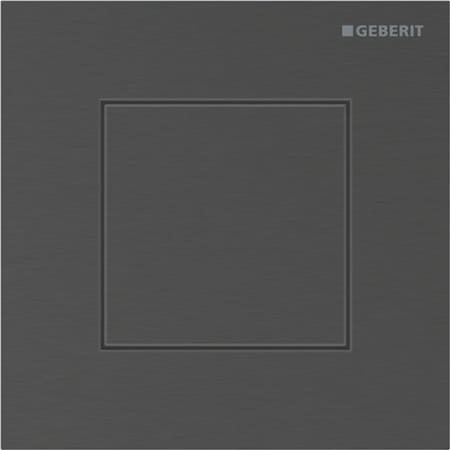

Plate, Button: black chrome / brushed, easy-to-clean coated

Product material

Stainless steel

Art. no.
116.217.QF.1
Colour / surface

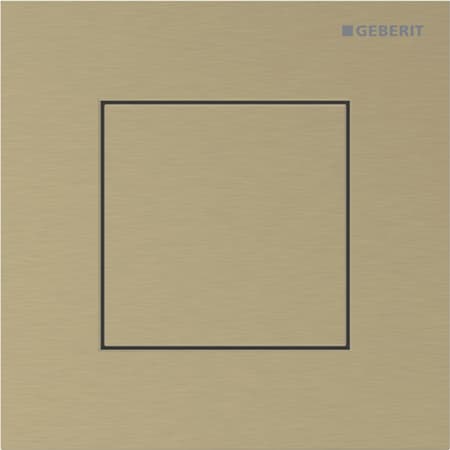

Plate, Button: brass-coloured / brushed, easy-to-clean coated

Product material

Stainless steel

Art. no.
116.217.SI.1
Colour / surface

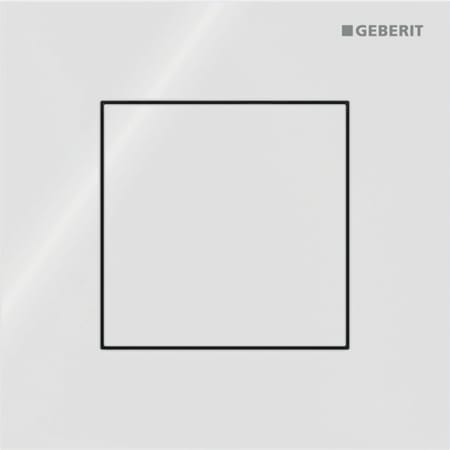

Plate, Button: white / glossy glass

Product material

Glass

Art. no.
116.217.SJ.1
Colour / surface

Plate, Button: black / glossy glass

Product material

Glass

Technical data

Flow pressure

1–8 bar

Water test pressure max.

16 bar

Test pressure air / inert gas max.

3 bar

Actuation force (N) max.

12 N

Flow rate at 100 kPa / 1 bar without flow limiter

0.3 l/s

Flow rate at 100 kPa / 1 bar with flow limiter

0.18 l/s

Flush time, adjustment range

4 / 8 / 12 s

Button shape

square

Application purposes

Click on an application purpose to search more products

For manual flush actuation of urinalsFor Geberit installation elements for urinal with front actuationFor Geberit installation elements for urinal with top actuationFor installation in installation sets for Geberit urinal flush controls (from year of manufacture 2009)

Characteristics

Click on a characteristic to search more products

Actuator plate with securing barFlush time setting with air nozzles (pneumatic)Low flush actuation forceShort stroke movement
Flush volume can be reduced to 0.5 l per flush with regulating screw of installation setTap group II in accordance with DIN 4109Components in contact with drinking water lead-free

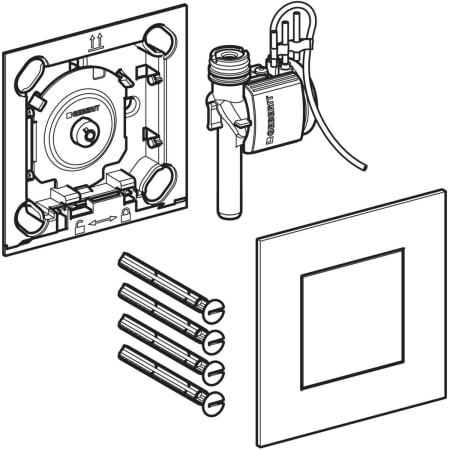

Scope of delivery

  • Type 40 actuator plate, square

  • Pneumatic flush actuation, premounted on mounting frame

  • Pneumatic valve

  • Fastening material

Can be combined with

Geberit installation set with flush pipe, for urinal flush control, universal

Urinal flush controls

Geberit installation set with flush pipe, for urinal flush control, universal

116.003.00.1

Geberit installation set with nipple made of brass, for urinal flush control, universal

Urinal flush controls

Geberit installation set with nipple made of brass, for urinal flush control, universal

116.004.00.1

Geberit GIS element for urinal, 114 cm, universal

Geberit GIS

Geberit GIS element for urinal, 114 cm, universal

461.621.00.1

Replaces art. no. 461.684.00.1, 461.685.00.1

Geberit Kombifix element for urinal, 109–127 cm, universal

Geberit Kombifix

Geberit Kombifix element for urinal, 109–127 cm, universal

457.611.00.1

Replaces art. no. 457.684.00.1, 457.685.00.1

Geberit GIS element for urinal, 114 cm, universal, for spray head

Geberit GIS

Geberit GIS element for urinal, 114 cm, universal, for spray head

461.606.00.1

Geberit Kombifix element for urinal, 109–127 cm, universal, for spray head

Geberit Kombifix

Geberit Kombifix element for urinal, 109–127 cm, universal, for spray head

457.606.00.1

Geberit Duofix element for urinal, 112–130 cm, universal

Geberit Duofix

Geberit Duofix element for urinal, 112–130 cm, universal

111.616.00.2

Replaces art. no. 111.616.00.1

Geberit Duofix element for urinal, 112–130 cm, universal, for spray head

Geberit Duofix

Geberit Duofix element for urinal, 112–130 cm, universal, for spray head

111.676.00.2

Replaces art. no. 111.676.00.1
