Geberit replacement set for urinal flush control, battery operation

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.	115.849.00.1
Power consumption	≤ 0.5 W

Technical data

Battery type	Alkaline (1.5 V AA)	Battery type Alkaline (1.5 V AA)
Service life, supplied battery	2 years	Service life, supplied battery 2 years
Degree of protection	IP45	Degree of protection IP45
Operating voltage	3 V DC	Operating voltage 3 V DC
Flow pressure	1–8 bar	Flow pressure 1–8 bar
Water test pressure max.	16 bar	Water test pressure max. 16 bar

Test pressure air / inert gas max.	3 bar	Test pressure air / inert gas max. 3 bar
Flow rate at 100 kPa / 1 bar without flow limiter	0.3 l/s	Flow rate at 100 kPa / 1 bar without flow limiter 0.3 l/s
Flow rate at 100 kPa / 1 bar with flow limiter	0.18 l/s	Flow rate at 100 kPa / 1 bar with flow limiter 0.18 l/s
Detection time, factory setting	7 s	Detection time, factory setting 7 s
Flush time, adjustment range	1–15 s	Flush time, adjustment range 1–15 s
Flush time, factory setting	7 s	Flush time, factory setting 7 s

Battery type	Alkaline (1.5 V AA)	Battery type Alkaline (1.5 V AA)
Service life, supplied battery	2 years	Service life, supplied battery 2 years
Degree of protection	IP45	Degree of protection IP45
Operating voltage	3 V DC	Operating voltage 3 V DC
Flow pressure	1–8 bar	Flow pressure 1–8 bar
Water test pressure max.	16 bar	Water test pressure max. 16 bar
Test pressure air / inert gas max.	3 bar	Test pressure air / inert gas max. 3 bar
Flow rate at 100 kPa / 1 bar without flow limiter	0.3 l/s	Flow rate at 100 kPa / 1 bar without flow limiter 0.3 l/s
Flow rate at 100 kPa / 1 bar with flow limiter	0.18 l/s	Flow rate at 100 kPa / 1 bar with flow limiter 0.18 l/s
Detection time, factory setting	7 s	Detection time, factory setting 7 s
Flush time, adjustment range	1–15 s	Flush time, adjustment range 1–15 s
Flush time, factory setting	7 s	Flush time, factory setting 7 s

Application purposes

Click on an application purpose to search more products

For converting existing Geberit urinal flush controls with battery operation and cover plate 16 x 16 cm For converting existing Geberit urinal flush controls art. no. 115.804.xx.x, 115.826.00.1, 115.838.00.1, 115.818.xx.x For automatic flush actuation of urinals Not suitable for installation in Geberit installation elements for urinal with top actuation

Not suitable for installation in Geberit installation elements for urinal with side actuation Not suitable for conversion of urinals with spray head

Characteristics

Click on a characteristic to search more products

Functions can be set and queried with the Geberit Service Handy Device settings and operation with mobile device via integrated Bluetooth® interface Compatible with Geberit Control App Wired networkable with Geberit gateway via GEBUS converter

Wirelessly connectable with Geberit Gateway via Bluetooth®Compatible with Geberit Connect

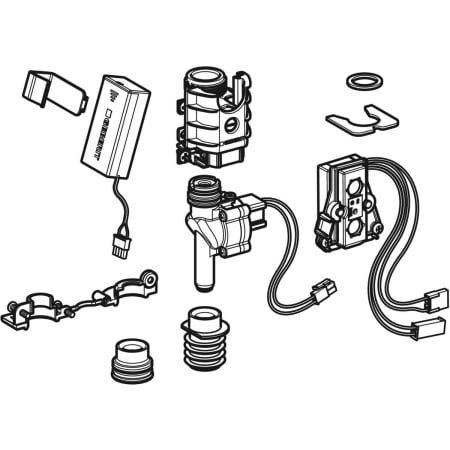

Scope of delivery

Infrared control
Solenoid valve
2 alkaline manganese batteries type AA 1.5 V
Stop valve with throttle

Holding-down clamp
Seals
Fastening material
