Replaces art. no. 115.801.00.1
| Art. no. | 115.801.00.5 |
Additional information
- Only compatible with art. no. 115.817.xx.5 and 115.818.xx.5
Geberit installation set for Basic urinal flush control
My list (0)
Technical data
Flow pressure 1–8 bar |
Water test pressure max. 16 bar |
Flow rate at 100 kPa / 1 bar without flow limiter 0.3 l/s |
Flow rate at 100 kPa / 1 bar with flow limiter 0.22 l/s |
Flow pressure 1–8 bar |
Water test pressure max. 16 bar |
Flow rate at 100 kPa / 1 bar without flow limiter 0.3 l/s |
Flow rate at 100 kPa / 1 bar with flow limiter 0.22 l/s |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products

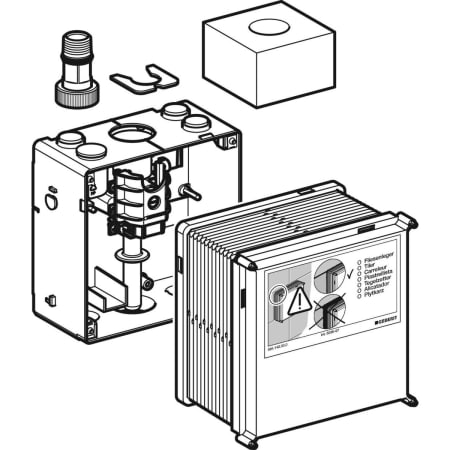

Scope of delivery
Concealed housing
Filter
Shut-off and regulating screw
Sleeve
Can be combined with
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Installation instructions | Basic urinal flush control installation set | - | |
Installation instructions | Mains connection for Basic urinal flush control | EN and 30 others |
Basic urinal flush control installation set
Mains connection for Basic urinal flush control
EN and 30 others
Other products
Spare parts
| # | Art. no. | Description | Replacement for |
|---|---|---|---|
| 1 | 242.130.00.1 | Geberit connecting nipple, straight, for urinal flush control | |
| 2 | 242.131.00.1 | Geberit connecting nipple, bent, for urinal flush control | |
| 3 | 241.934.00.1 | Geberit throttle, plastic | 242.789.00.1 |
13 Articles
