pdp-article-replacementFor 458.233.00.2

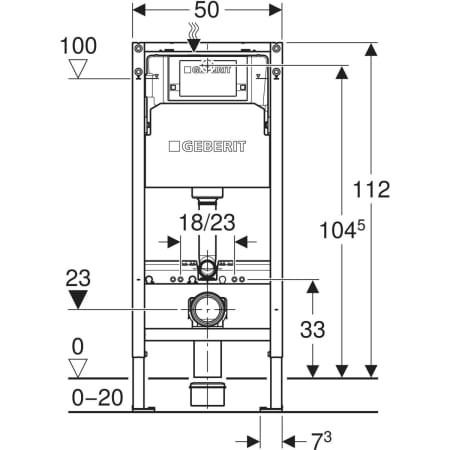

| lst-article-number | 458.233.00.3 |
| B | 50 cm |
| H | 112 cm |

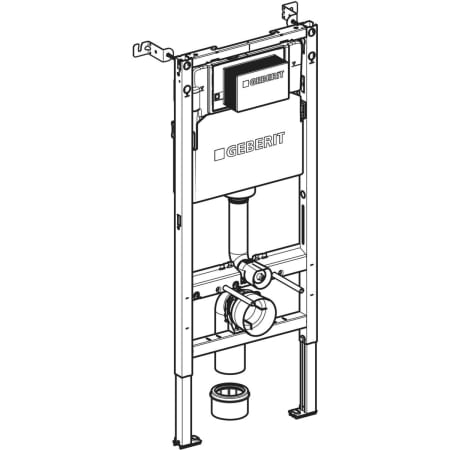

Geberit Duofix element for wall-hung WC, 112 cm, with Alpha concealed cistern 12 cm, 6 / 3 litres
wishlist-default-name (0)
pdp-nav-technicalData
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Steel |
Height-adjustable Yes |
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Steel |
Height-adjustable Yes |
pdp-nav-applicationPurposes
pdp-uses-tooltip
pdp-nav-characteristics
pdp-characteristics-tooltip
2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingFrame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 62 cmAlternative fastening point for wall anchorsFoot plates made of plasticFoot plate depth suitable for installation in U-profiles UW 50Galvanised leg supports protected against corrosion
Connection bend can be mounted without toolsGeberit Alpha concealed cistern 12 cm fully insulated against condensationFor front actuation, suitable for dual flushImmediate post flush possible with factory settingWater supply connection on the rear or top centreProtection box for service opening, can be cut to length, protects against moisture and dirt
pdp-nav-delivery
Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring
Protection box for service opening
2 wall anchors
Connection set for WC, ø 90 mm
Connection bend 90° made of PE-HD, ø 90 mm
Adapter socket made of PE-HD, ø 90 / 110 mm
Fastening and protection material
