Shower floor drains

Geberit CleanPoint shower floor drain with inlet

wishlist-default-name (0)

pdp-nav-article

pdp-article-info-message

lst-article-number
154.059.00.1
DN

50

d, ø

50 mm

pdp-article-moreInfo

  • Screwable grating with grating frame (art. no. 154.310.00.1) must be ordered separately

pdp-nav-technicalData

Depth of water seal (mm)

50 mm

Product material

PE-HD

pdp-nav-applicationPurposes

pdp-uses-tooltip

For installation inside buildingsFor drainage of floor-even showersSuitable for barrier-free constructionFor composite seals
For screed heights ≥ 180 mm at inletFor use as floor drain with horizontal outlet

pdp-nav-characteristics

pdp-characteristics-tooltip

Quality-monitored in accordance with EN 1253-3Suitable for tile structures on floor 2–40 mmPremounted sealing fleeceSealing fleece, 10 cm circumferential, for connecting sealing systemsGrating made of stainless steel
Grating can be aligned in height, inclination and offsetBase unit made of EPS, for sound decoupling and receiving the trapLoad-bearing capacity, class K 3 (3 kN)Water drainage above the composite seal

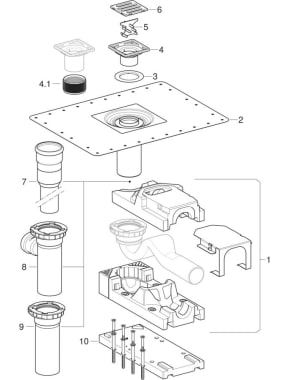

pdp-nav-delivery

  • Protection box cover with reference line

  • Thin bed bonding flange

  • Comb insert

  • Grating frame unpunched with compensation ring

  • Grating

  • Trap made of PE-HD

  • Branch fitting 88.5° made of PE, ø 63 / 40 mm

  • Fastening material

  • Distance plate, thickness 2 cm

pdp-nav-accessories

Geberit CleanPoint grating, screwable, 8 x 8 cm with grating frame

Accessories for shower floor drains

Geberit CleanPoint grating, screwable, 8 x 8 cm with grating frame

154.310.00.1

Geberit CleanPoint design grating, round, 8 x 8 cm

Accessories for shower floor drains

Geberit CleanPoint design grating, round, 8 x 8 cm

154.311.00.1

Geberit CleanPoint design grating, 8 x 8 cm

Accessories for shower floor drains

Geberit CleanPoint design grating, 8 x 8 cm

154.312.00.1

pdp-similiarProducts

Geberit CleanPoint shower floor drain for screed height at inlet 65–90 mm

Showers

Geberit CleanPoint shower floor drain for screed height at inlet 65–90 mm

154.052.00.1

Geberit CleanPoint shower floor drain for screed height at inlet 90–220 mm

Showers

Geberit CleanPoint shower floor drain for screed height at inlet 90–220 mm

154.050.00.1

pdp-article-replacementFor 154.000.00.1

Geberit CleanPoint cross-floor shower floor drain

Showers

Geberit CleanPoint cross-floor shower floor drain

154.053.00.1

pdp-nav-spareParts
