Logo for geberit brand

XI

Elements for WCs

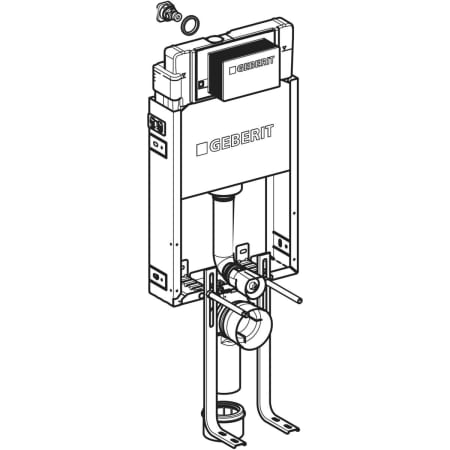

Geberit Kombifix element for wall-hung WC, 106 cm, with Alpha concealed cistern 12 cm, with leg supports

wishlist-default-name (0)

pdp-nav-article

pdp-article-info-message

pdp-article-replacementFor 110.231.00.1

lst-article-number
110.231.00.2

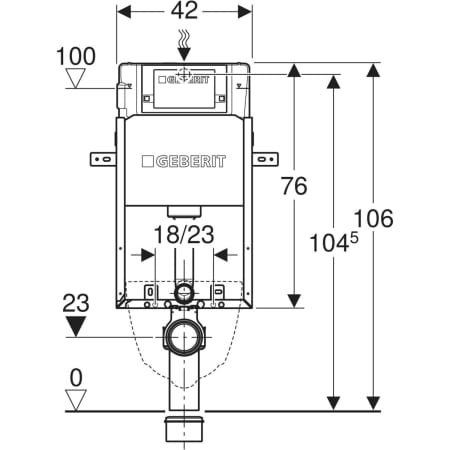

B

42 cm

H

106 cm

pdp-nav-technicalData

Flow pressure

0.1–10 bar

Water temperature max.

25 °C

Flush volume, factory setting

6 / 3 l

Flush volume large, adjustment range

4 / 4.5 / 6 / 7.5 l

Flush volume small, adjustment range

2–4 l

Product material

Steel

Height-adjustable

No

pdp-nav-applicationPurposes

pdp-uses-tooltip

For masonry wallsFor installation in part or room-height prewall installationsFor wall-hung WCs with connection dimensions in accordance with EN 33:2011For dual flush

pdp-nav-characteristics

pdp-characteristics-tooltip

Zinc-plated mounting frameMounting frame with four fastening bracketsConnection bend can be mounted without toolsFastening for connection bend can be mounted without tools from frontConcealed cistern with front actuation
Concealed cistern, fully insulated against condensationImmediate post flush possible with factory settingWater supply connection on the rear or top centreProtection cover box for service opening protects against moisture and dirtProtection box for service opening can be cut to length

pdp-nav-delivery

  • Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring

  • Protection box for service opening

  • Connection set for WC, ø 90 mm

  • Connection bend made of PE-HD, ø 90 mm

  • Adapter socket made of PE-HD, ø 90 / 110 mm

  • 2 feet

  • 2 protection plugs

  • 2 threaded rods M12

  • Fastening material

pdp-nav-accessories

Geberit Kombifix set of leg supports

For fastenings

Geberit Kombifix set of leg supports

457.888.26.1

Geberit Kombifix set of studs with foot plate

For fastenings

Geberit Kombifix set of studs with foot plate

457.872.26.1
