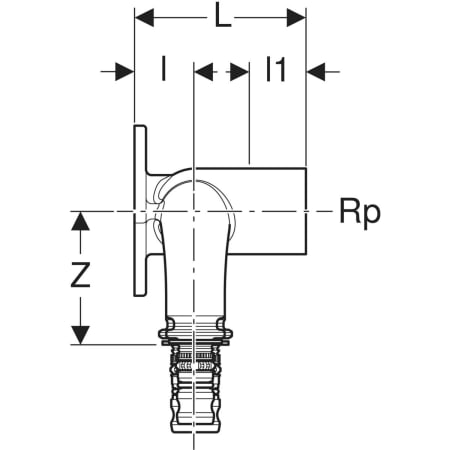

Geberit Mepla double elbow tap connector 90°

wishlist-default-name (0)

pdp-nav-article

pdp-article-info-message

lst-article-number
601.273.00.5
DN

12

d, ø

16 mm

lst-article-number
602.274.00.5
DN

12

15

d, ø

16 mm

lst-article-number
602.275.00.5
DN

15

12

d, ø

20 mm

lst-article-number
602.273.00.5
DN

15

d, ø

20 mm

lst-article-number
603.274.00.5
DN

15

20

d, ø

20 mm

lst-article-number
603.275.00.5
DN

20

15

d, ø

26 mm

lst-article-number
603.273.00.5
DN

20

d, ø

26 mm

pdp-nav-technicalData

Product material

Gunmetal/lead-free gunmetal

pdp-nav-applicationPurposes

pdp-uses-tooltip

For cold and hot potable waterFor cooling and heating water without antifreeze agentFor cooling and heating water with antifreeze agentFor service water and process waterFor rainwater with a pH value ≥ 5.5For seawaterFor extinguishing water (wet)
For extinguishing water (wet/dry, dry)For chemicals and technical liquidsFor compressed air (oil purity class 0–3)For negative pressureFor inert gases (e.g. nitrogen)For technical building systems, industry and shipbuilding

overview-applicationPurposes

Application overview – Geberit Mepla

pdp-nav-characteristics

pdp-characteristics-tooltip

Leaky if unpressedFour fastening pointsO-ring made of EPDMPressing nipple with transparent protective cap

pdp-nav-accessories

Geberit sound insulation set for double elbow tap connector 90°

Insulations for connectors

Geberit sound insulation set for double elbow tap connector 90°

601.805.00.1
