| Art. no. | 691.231.2P.1 |
| Compatibility | [2] [4] |
| Protection class | III |
Geberit CP700G hydraulic power pack 125 V, in case
My list (0)
Technical data
Degree of protection IP43 |
Nominal voltage 125 V AC |
Operating voltage 18 V DC |
Mains frequency 50–60 Hz |
Rechargeable battery type lithium-ion battery |
Operating pressure 700 bar |
Operating temperature -20 – +60 °C |
Operating temperature, rechargeable battery -10 – +50 °C |
Filling capacity, hydraulic oil 0.75 l |
Sound pressure level 75 dB(A) |
Vibration emission value max. 2.5 m/s² |
Degree of protection IP43 |
Nominal voltage 125 V AC |
Operating voltage 18 V DC |
Mains frequency 50–60 Hz |
Rechargeable battery type lithium-ion battery |
Operating pressure 700 bar |
Operating temperature -20 – +60 °C |
Operating temperature, rechargeable battery -10 – +50 °C |
Filling capacity, hydraulic oil 0.75 l |
Sound pressure level 75 dB(A) |
Vibration emission value max. 2.5 m/s² |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products

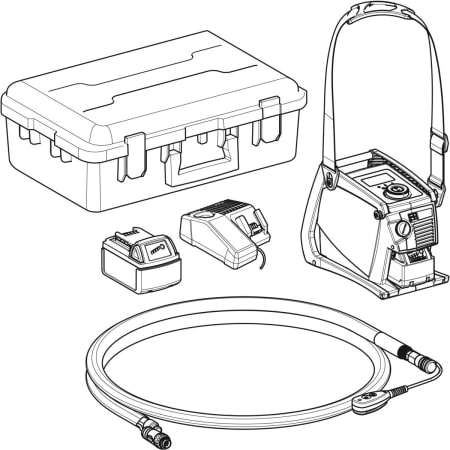

Scope of delivery
Hydraulic power pack 18 V DC
Hydraulic hose with hydraulic quick coupling, type CEJN 217, length 1.5 m
Remote control
Battery charger
2 lithium-ion rechargeable batteries, 18 V / 5 Ah
USB stick with analysis software
Case
Carrying belt
