Replaces art. no. 458.127.00.1
| Art. no. | 458.127.00.2 |
| B | 50 cm |
| H | 112 cm |
Additional information
- Actuator plate has to be ordered separately

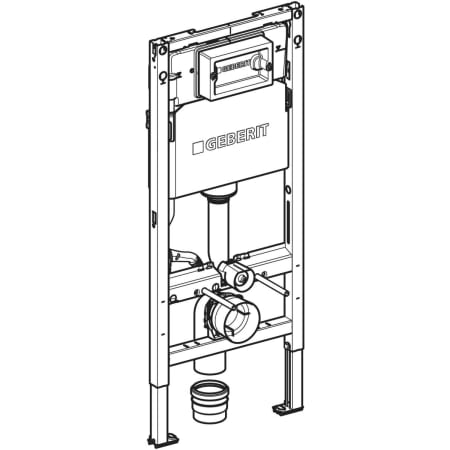

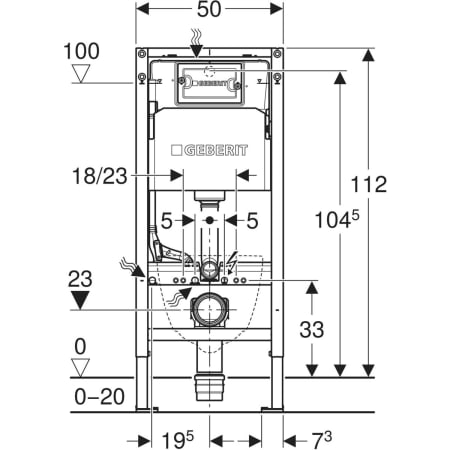

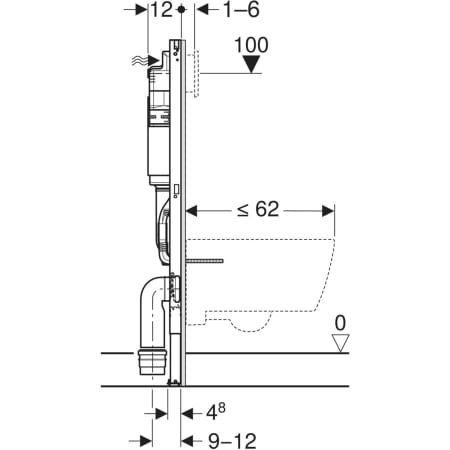

Geberit Duofix element for wall-hung WC, 112 cm, with Delta concealed cistern 12 cm
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Steel |
Height-adjustable Yes |
Flow pressure 0.1–10 bar |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Steel |
Height-adjustable Yes |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingFrame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 62 cmAlternative fastening point for wall anchorsFoot plates made of plasticFoot plate depth suitable for installation in U-profiles UW 50Galvanised leg supports protected against corrosion
Geberit Delta concealed cistern 12 cm, fully insulated against condensationFor front actuation, suitable for single, dual and stop-and-go flushesImmediate post flush possible with factory settingWater supply connection on the rear or top centreWith conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cableFastening option for electrical connection
Scope of delivery
Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring
Protection box for service opening, made of polystyrene foam
2 distance bolts
Connection set for WC, ø 90 mm
Connection bend 90° made of PE-HD, ø 90 mm
Adapter socket made of PVC, ø 90 / 100 mm
Fastening and protection material
