Replaces art. no. 146.090.11.1, 146.094.11.1
| Art. no. | 146.350.01.1 |
| Colour / surface | WC ceramic appliance: white / KeraTect Design cover: white / glossy |

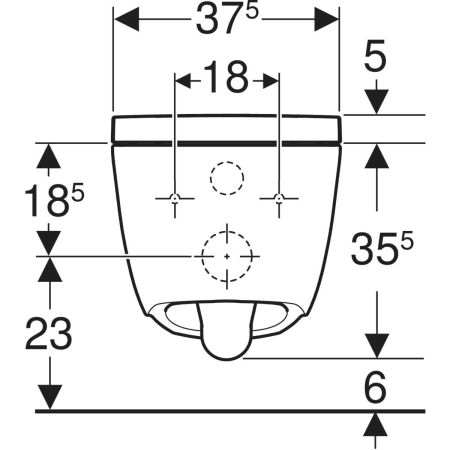

| B | 37.5 cm |

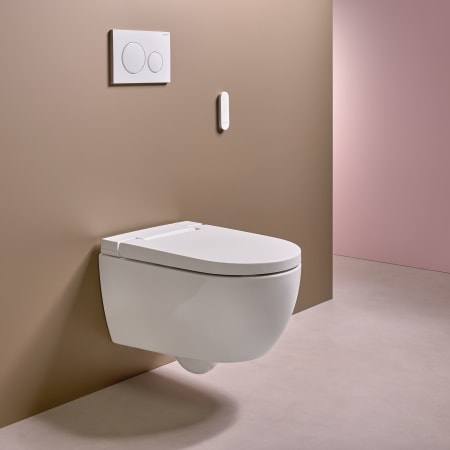

Geberit AquaClean Alba WC complete solution, wall-hung WC
My list (0)
Technical data
Degree of protection IPX4 |
Nominal voltage 230 V AC |
Mains frequency 50 Hz |
Power consumption in standby mode max. 0.5 W |
Flow pressure 0.5–10 bar |
Operating temperature 5–40 °C |
Water temperature, adjustment range 34–40 °C |
Spray time 20 s |
WC seat load max. 150 kg |
Odour extraction unit No |
SoftOpening Yes |
With WC seat ring heating No |
With orientation light No |
With dryer functionality No |
Degree of protection IPX4 |
Nominal voltage 230 V AC |
Mains frequency 50 Hz |
Power consumption in standby mode max. 0.5 W |
Flow pressure 0.5–10 bar |
Operating temperature 5–40 °C |
Water temperature, adjustment range 34–40 °C |
Spray time 20 s |
WC seat load max. 150 kg |
Odour extraction unit No |
SoftOpening Yes |
With WC seat ring heating No |
With orientation light No |
With dryer functionality No |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Water heating by storage water heaterAnal shower with WhirlSpray shower technologySpray intensity can be set to five different levelsShower water temperature can be adjusted via Geberit Home AppSpray arm can be set to five different positions via Geberit Home AppAdjustable oscillating spray (automatic forward and reverse motion of the spray arm)Automatic pre- and postrinsing of the spray nozzle with fresh waterDescaling programmeWall-hungRimless WC ceramic appliance featuring TurboFlush flush technologyHorizontal outletWashdown WC
User detectionWC seat ring and WC lid with soft-closing mechanismWC lid with SoftOpeningWC seat ring and WC lid with quick releaseFunctions can be controlled remotelyCompatible with Geberit Home AppWater supply connection on the left, hidden behind the WC ceramicMains connection with flexible three-core sheathed cable, on the right side, hidden behind the WC ceramicExternal water supply connection on the left possible with accessoriesExternal mains connection with power outlet on the right possibleApproval in accordance with (DIN) EN 1717 / (DIN) EN 13077
Scope of delivery
Water supply connection set for Sigma and Omega concealed cisterns 12 cm, installation height 112 cm
Female socket for mains connection
Sound insulation set
Remote control with wall-mounted holder and battery CR2032
Fastening material
