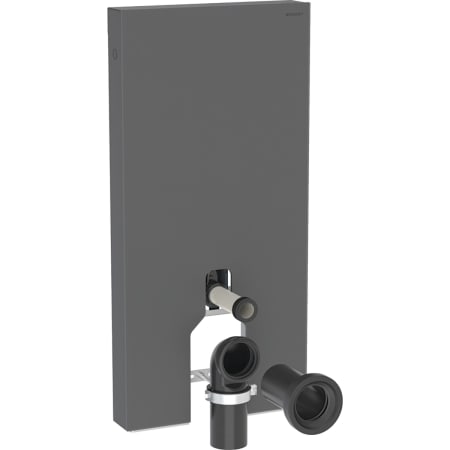

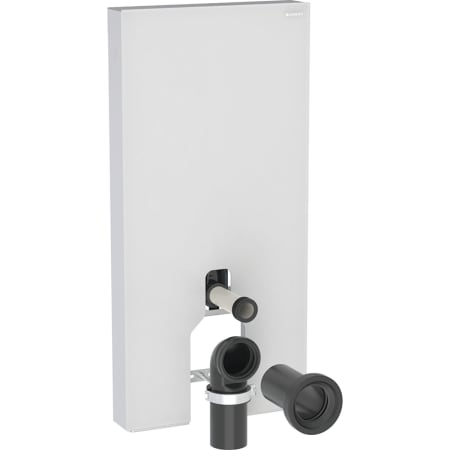

Geberit Monolith Plus sanitary module for floor-standing WC, 101 cm, front cladding made of glass

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Replaces art. no. 131.201.JK.5

Art. no.

131.201.JK.7

Colour / surface

Front: lava / glass

Side cladding: black / brushed aluminium

48 cm

Replaces art. no. 131.201.JL.5

Art. no.

131.201.JL.7

Colour / surface

Front: sand grey / glass

Side cladding: brushed aluminium

48 cm

Replaces art. no. 131.201.SI.5

Art. no.

131.201.SI.7

Colour / surface

Front: white / glass

Side cladding: brushed aluminium

48 cm

Replaces art. no. 131.201.SJ.6

Art. no.

131.201.SJ.7

Colour / surface

Front: black / glass

Side cladding: black / brushed aluminium

48 cm

Technical data

Degree of protection	IPX4	Degree of protection IPX4
Nominal voltage	100–240 V AC	Nominal voltage 100–240 V AC
Operating voltage	12 V DC	Operating voltage 12 V DC
Mains frequency	50–60 Hz	Mains frequency 50–60 Hz
Power consumption in standby mode max.	0.5 W	Power consumption in standby mode max. 0.5 W

Flow pressure	0.1–10 bar	Flow pressure 0.1–10 bar
Flush volume, factory setting	6 / 3 l	Flush volume, factory setting 6 / 3 l
Flush volume large, adjustment range	4–6 l	Flush volume large, adjustment range 4–6 l
Small flush volume	3 l	Small flush volume 3 l
Light colour	2200–4000 K	Light colour 2200–4000 K

Degree of protection	IPX4	Degree of protection IPX4
Nominal voltage	100–240 V AC	Nominal voltage 100–240 V AC
Operating voltage	12 V DC	Operating voltage 12 V DC
Mains frequency	50–60 Hz	Mains frequency 50–60 Hz
Power consumption in standby mode max.	0.5 W	Power consumption in standby mode max. 0.5 W
Flow pressure	0.1–10 bar	Flow pressure 0.1–10 bar
Flush volume, factory setting	6 / 3 l	Flush volume, factory setting 6 / 3 l
Flush volume large, adjustment range	4–6 l	Flush volume large, adjustment range 4–6 l
Small flush volume	3 l	Small flush volume 3 l
Light colour	2200–4000 K	Light colour 2200–4000 K

Application purposes

Click on an application purpose to search more products

For floor inlets For renovations, conversions and new buildings For wall inlets with an inlet height of 18 cm For floor-standing WCs with water inlet height 32–36 cm above floor in accordance with DIN EN 33 For replacing low-level exposed cisterns

For replacing floor-standing WCs with close-coupled exposed cistern For connecting Geberit AquaClean Tuma WC complete solution, floor-standing WC For connecting Geberit AquaClean WC enhancement solutions, with accessories For mounting on finished floors For installation in front of drywalls or solid walls

Characteristics

Click on a characteristic to search more products

Dual flush Soft-touch buttons for flush actuation Settings can only be changed with the Geberit Home App Odour extraction with ceramic honey comb filter can be activated Odour extraction unit with run-on function Adjustable interval flush With ComfortLight Lighting mood infinitely adjustable from orientation light to daylight Light colour continuously adjustable from warm white to cool white

DALI-compatible control Operation with extra-low voltage, no mains voltage in cistern Water supply connection on the bottom Water supply connection on the left/right possible with accessories Compensation of dimensional tolerances possible Cistern, fully insulated against condensation Side cladding made of aluminium brushed Self-supporting

Scope of delivery

Water supply connection set with 2 angle stop valves, 1/2"
Flush bend extension 160 mm
Sleeve made of EPDM, ø 44 / 55 mm
Straight connector made of PE-HD, ø 90 mm
Adapter socket made of PE-HD, ø 90 / 110 mm
Connection bend 90° made of PE-HD, ø 90 / 110 mm

Female socket for mains connection
Power supply unit
Base cover
Fastening material for drywall
Fastening material

The app for various Geberit bathroom products

Geberit Home offers its users digital access to various Geberit products in the bathroom and assists you with operation, configruation and maintenance. The app and its features are free.

Accessories

Lateral water supply connection set for Geberit Monolith sanitary module for WC

131.071.21.1

For WC enhancement solutions and WC complete solutions

Geberit outlet mounting box

242.837.00.1

For WC complete solutions

Interface module 12 V for Geberit AquaClean Mera/Sela

147.049.00.1
