Pressing tools compatibility [2]

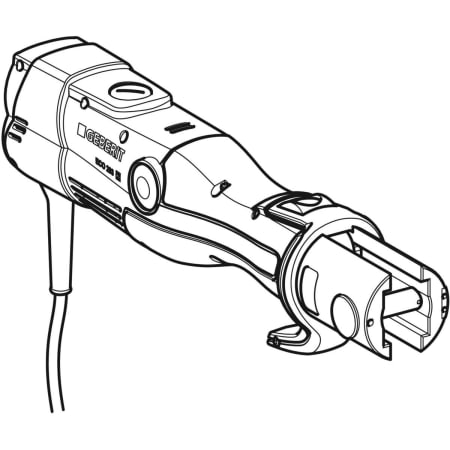

Geberit ECO 203 pressing tool [2], 230 V

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Replaces art. no. 690.501.P2.1

Art. no.	690.511.P2.1
Compatibility	[2]
Protection class	II

Additional information

Fit into Geberit case with case insert from 20B-II

Technical data

Nominal force	32 kN	Nominal force 32 kN
Degree of protection	IP20	Degree of protection IP20
Nominal voltage	230 V AC	Nominal voltage 230 V AC
Mains frequency	50–60 Hz	Mains frequency 50–60 Hz
Cable length	5 m	Cable length 5 m

Operating temperature	-20 – +60 °C	Operating temperature -20 – +60 °C
Sound pressure level	81 dB(A)	Sound pressure level 81 dB(A)
Sound power level max.	92 dB(A)	Sound power level max. 92 dB(A)
Vibration emission value max.	2.5 m/s²	Vibration emission value max. 2.5 m/s²

Nominal force	32 kN	Nominal force 32 kN
Degree of protection	IP20	Degree of protection IP20
Nominal voltage	230 V AC	Nominal voltage 230 V AC
Mains frequency	50–60 Hz	Mains frequency 50–60 Hz
Cable length	5 m	Cable length 5 m
Operating temperature	-20 – +60 °C	Operating temperature -20 – +60 °C
Sound pressure level	81 dB(A)	Sound pressure level 81 dB(A)
Sound power level max.	92 dB(A)	Sound power level max. 92 dB(A)
Vibration emission value max.	2.5 m/s²	Vibration emission value max. 2.5 m/s²

Application purposes

Click on an application purpose to search more products

For pressing Geberit pressing systems

Characteristics

Click on a characteristic to search more products

Geberit compatibility [2]LED pressing point light Hydraulic
