XD

With turn handle actuation

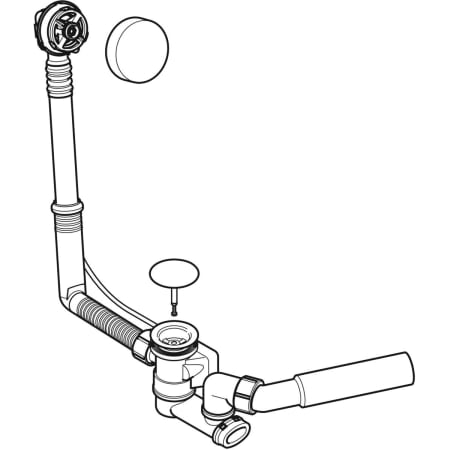

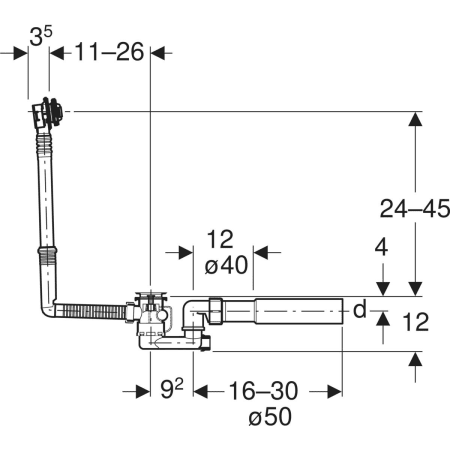

Geberit bathtub drain with turn handle, d52, length 26 cm, with ready-to-fit-set

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Replaces art. no. 150.520.21.1

Art. no.
150.520.21.6
Colour / surface

chrome / glossy

DN

40

Technical data

Overflow discharge rate

0.6 l/s

Depth of water seal (mm)

50 mm

Application purposes

Click on an application purpose to search more products

For bathtubs with valve hole ø 52 mmFor bathtubs made of steel, plastic or cast ironFor standard-size bathtubs

Characteristics

Click on a characteristic to search more products

Quality-monitored in accordance with EN 274-3With overflowOverflow head with extendible mount can be fastenedDouble-sided seals on drain and overflow

Scope of delivery

  • Ready-to-fit set

  • Waste outlet

  • Trap

  • Connection bend made of PE-HD, ø 40 / 50 mm

  • Protection box

  • Fastening material

Other products

Geberit bathtub drain with turn handle, d52, length 26 cm

Waste fittings and traps for showers and bathtubs

Geberit bathtub drain with turn handle, d52, length 26 cm

150.501.00.6

Replaces art. no. 150.501.00.1

Geberit bathtub drain with turn handle, d52, length 73 cm

Waste fittings and traps for showers and bathtubs

Geberit bathtub drain with turn handle, d52, length 73 cm

150.505.00.6

Replaces art. no. 150.505.00.1

Geberit bathtub drain with turn handle, d52, length 73 cm, with ready-to-fit-set

Waste fittings and traps for showers and bathtubs

Geberit bathtub drain with turn handle, d52, length 73 cm, with ready-to-fit-set

150.525.21.6

Replaces art. no. 150.525.21.1

Spare parts
