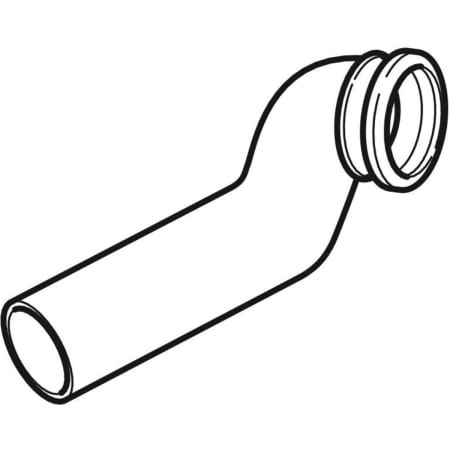

Geberit HDPE connection bend 90° for wall-hung WC, offset to the right, with extension

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.
366.914.16.1
DN

90

90

d, ø

90 mm

d1, ø

90 mm

arc

90 °

A

7.8 cm

a

4.5 cm

L

29 cm

H

10 cm

K

15 cm

Art. no.
367.902.16.1
DN

100

100

d, ø

110 mm

d1, ø

110 mm

arc

90 °

A

7.5 cm

a

4.5 cm

L

32 cm

H

10 cm

K

17 cm

Art. no.
367.914.16.1
DN

100

90

d, ø

110 mm

d1, ø

90 mm

arc

90 °

A

7.5 cm

a

4.5 cm

L

32 cm

H

10 cm

K

17 cm

Technical data

Product material

PE-HD

Application purposes

Click on an application purpose to search more products

Characteristics

Click on a characteristic to search more products

Scope of delivery

  • Protective cap

Other products

Spare parts
