- Actuator plate has to be ordered separately
My list (0)
Flow pressure (bar) - min. to max. 0.1–10 bar |
Flush volume, factory setting (l) 6 / 3 l |
Flush volume large, adjustment range (l) 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range (l) 2–4 l |
Product material Steel |
Height-adjustable No |
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Connection set for WC, ø 90 mm
Connection bend made of PE-HD, ø 90 mm
Adapter socket made of PE-HD, ø 90 / 110 mm
Filling segment
2 protection plugs
2 threaded rods M12
Fastening material
Your input does not return any results

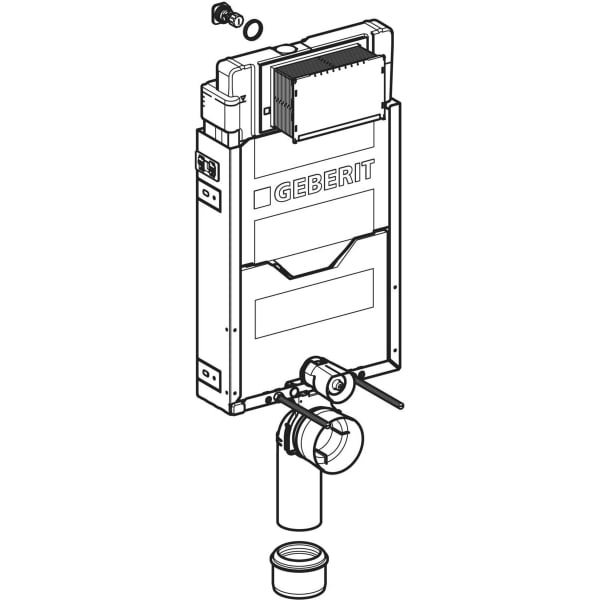

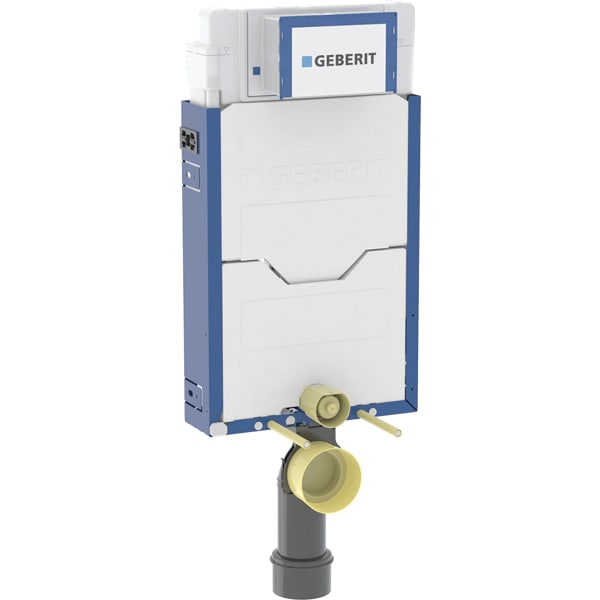

Geberit Kombifix elements for wall-hung WC, with Sigma concealed cistern 12 cm (UP320)
Geberit Kombifix elements for wall-hung WC, with Sigma concealed cistern 12 cm (UP320)
2008 -
# | Art. no. | Description | Remarks |
---|---|---|---|
1 | Go to the spare parts page: | ||
2 | 457.801.00.1 | Geberit filling segment for Sigma concealed cistern 12 cm | |
3 | 156.050.00.1 | Geberit sound insulation set for wall-hung WC | |
18 Articles
