Replaces art. no. 110.340.00.1
| Art. no. | 110.340.00.5 |
| B | 42 cm |
| H | 108 cm |
Additional information
- Actuator plate has to be ordered separately

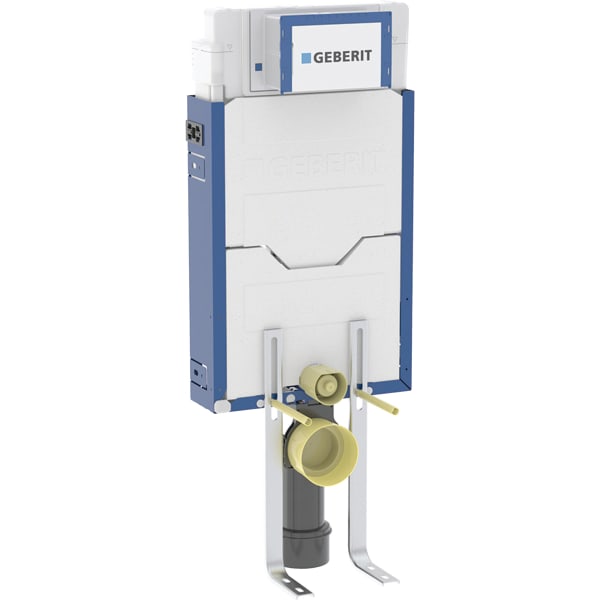

Geberit Kombifix element for wall-hung WC, 108 cm, with Sigma concealed cistern 12 cm, with leg supports
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Flush volume, factory setting 6 / 3 l |
Full flush volume, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Steel |
Height-adjustable No |
Flow pressure 0.1–10 bar |
Flush volume, factory setting 6 / 3 l |
Full flush volume, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Steel |
Height-adjustable No |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Powder-coated mounting frameMounting frame with four fixing bracketsFastening for connection bend can be mounted without tools from frontConcealed cistern with front actuationConcealed cistern, fully insulated against condensationImmediate post flush possible with factory setting
Tool-free installation and maintenance work on concealed cisternWater supply connection on the rear or top centreComponents in contact with drinking water lead-freeProtection box for service opening can be cut to lengthWith conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cableFastening option for electrical connection
Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Connection set for WC, ø 90 mm
Connection bend made of PE-HD, ø 90 mm
Adapter socket made of PE-HD, ø 90 / 110 mm
Filling segment
2 feet
2 protection plugs
2 threaded rods M12
Fastening material
Accessories
Accessory overviews
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Declaration of performance | DoP14 Cistern | EN and 30 others | |
Installation instructions | Connection set for wall-hung WC | - | |
Installation instructions | Geberit Kombifix Sigma WC 12 cm | - | |
Maintenance manual | Sigma 12 cm concealed cistern | - |
DoP14 Cistern
EN and 30 others
Connection set for wall-hung WC
Geberit Kombifix Sigma WC 12 cm
Sigma 12 cm concealed cistern
Films
Other products
Spare parts
| # | Art. no. | Description | Replaced by | Replacement for | Remarks |
|---|---|---|---|---|---|
| 1 | Go to the spare parts page: Sigma concealed cisterns 12 cm (UP320) | ||||
| 2 | 457.801.00.2 | Geberit filling segment for Sigma concealed cistern 12 cm | 457.801.00.1 | From 2025 range | |
| 3 | 156.050.00.1 | Geberit sound insulation set for wall-hung WC | |||
