Additional information
- Actuator plate has to be ordered separately

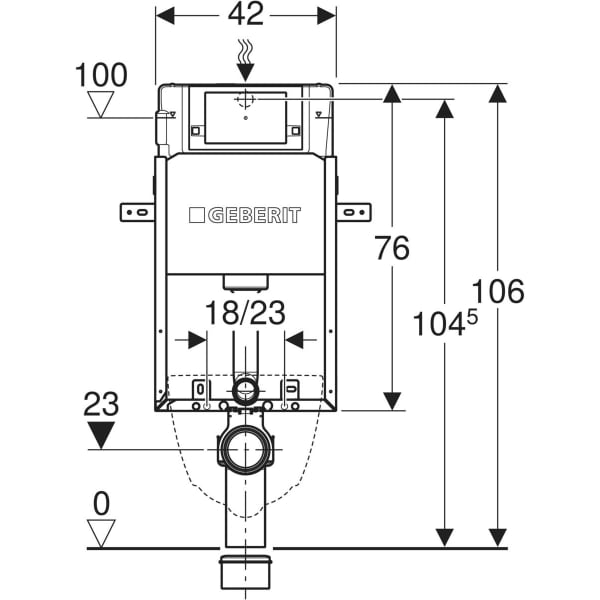

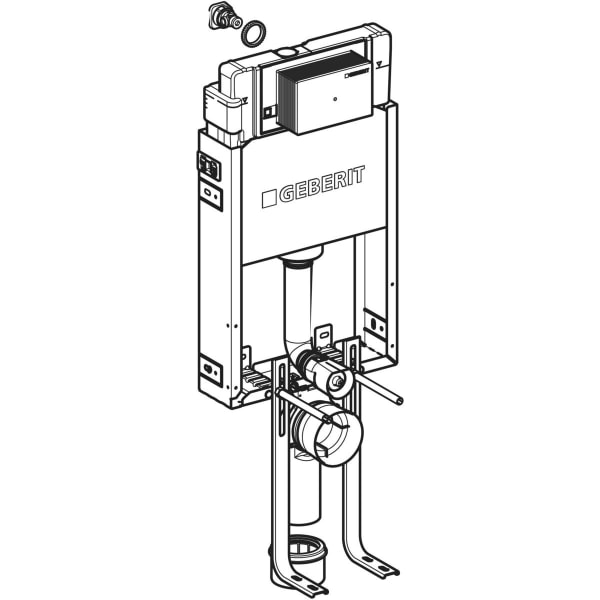

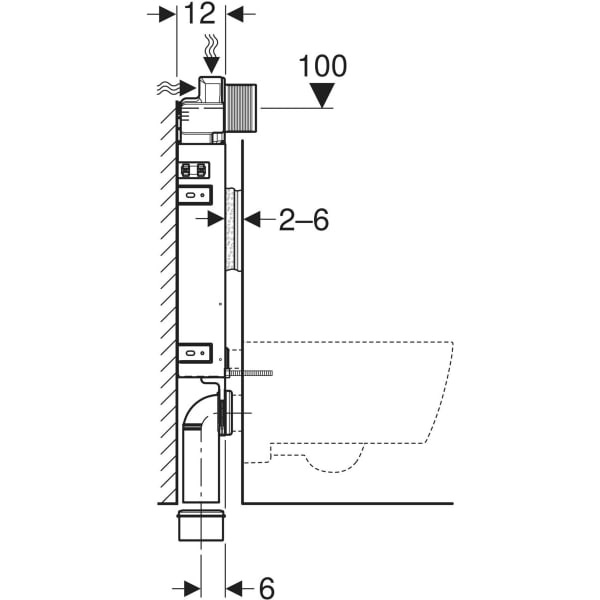

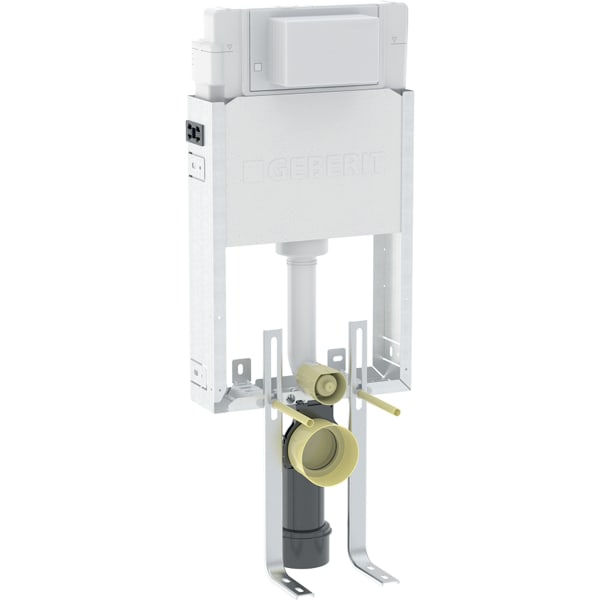

Geberit Kombifix element for wall-hung WC, 106 cm, with Alpha concealed cistern 12 cm, with leg supports
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Steel |
Height-adjustable No |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring
Protection box for service opening
Connection set for WC, ø 90 mm
Connection bend made of PE-HD, ø 90 mm
Adapter socket made of PE-HD, ø 90 / 110 mm
2 feet
2 protection plugs
2 threaded rods M12
Fastening material
Documents
Your input does not return any results
Spare parts
Geberit Kombifix elements for wall-hung WC, with Alpha concealed cistern 12 cm
Geberit Kombifix elements for wall-hung WC, with Alpha concealed cistern 12 cm
2021 -
| # | Art. no. | Description |
|---|---|---|
| 1 | Go to the spare parts page: | |
| 2 | 216.179.00.1 | Geberit fastening material |
| 3 | 240.189.00.1 | Geberit set of threaded rods M12 (2 pc.): M=12mm |
16 Articles
Geberit Kombifix elements for wall-hung WC, with Alpha concealed cistern 12 cm, (from year of manufacture 2023)
Geberit Kombifix elements for wall-hung WC, with Alpha concealed cistern 12 cm, (from year of manufacture 2023)
2023 -
| # | Art. no. | Description |
|---|---|---|
| 1 | Go to the spare parts page: | |
| 2 | 216.179.00.1 | Geberit fastening material |
| 3 | 240.189.00.1 | Geberit set of threaded rods M12 (2 pc.): M=12mm |
