Additional information
- Actuator plate has to be ordered separately

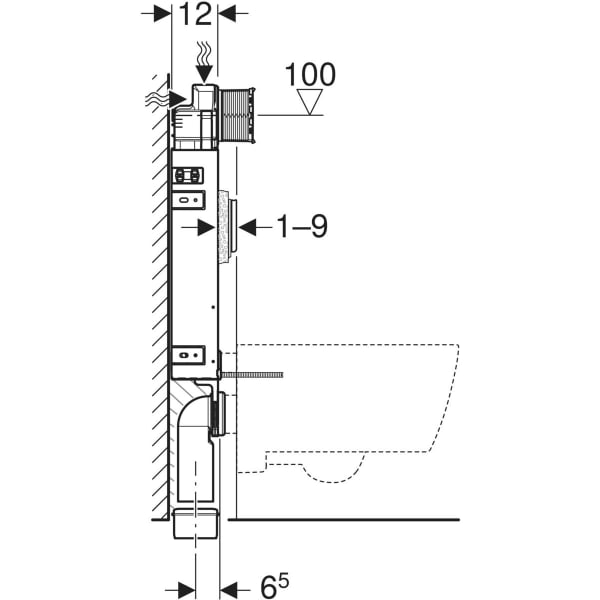

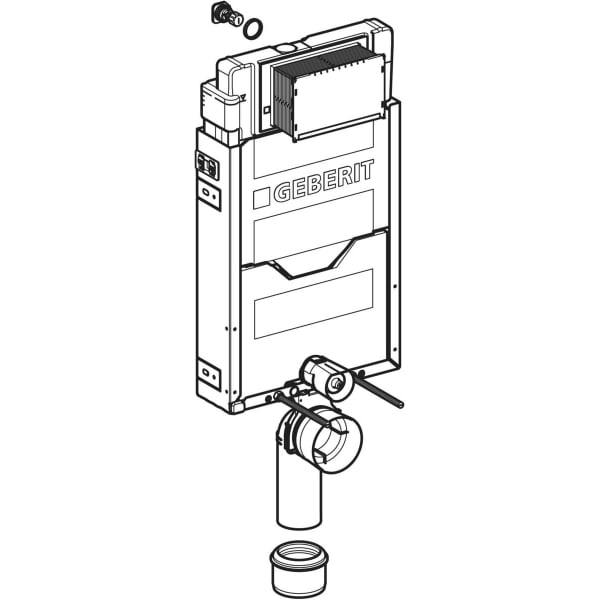

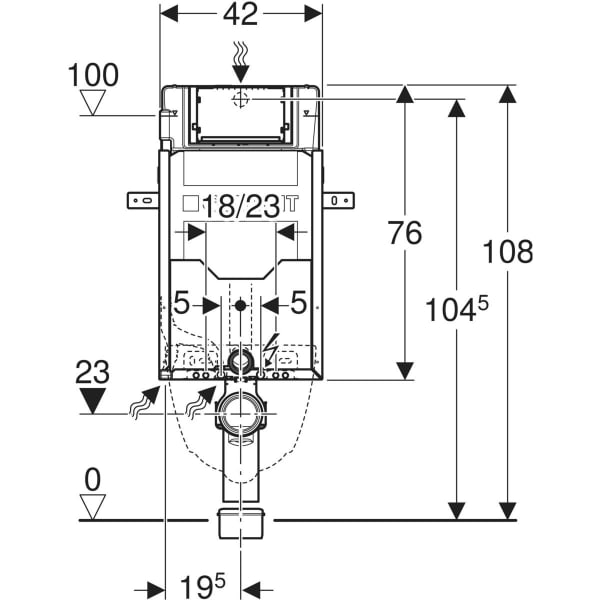

Geberit Kombifix element for wall-hung WC, 108 cm, with Sigma concealed cistern 12 cm, 4.5 / 3 litres
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Flush volume, factory setting 4.5 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Steel |
Height-adjustable No |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Powder-coated mounting frameMounting frame with four fixing bracketsFastening for connection bend can be mounted without tools from frontConcealed cistern with front actuationConcealed cistern, fully insulated against condensationImmediate post flush possible with factory setting
Tool-free installation and maintenance work on concealed cisternWater supply connection on the rear or top centreProtection box for service opening can be cut to lengthWith conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cableFastening option for electrical connection
Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Connection set for WC, ø 90 mm
Connection bend made of PE-HD, ø 90 mm
Adapter socket made of PE-HD, ø 90 / 110 mm
Filling segment
2 protection plugs
2 threaded rods M12
Fastening material
Documents
Your input does not return any results
Films
Spare parts
Geberit Kombifix elements for wall-hung WC, with Sigma concealed cistern 12 cm (UP320)
Geberit Kombifix elements for wall-hung WC, with Sigma concealed cistern 12 cm (UP320)
2008 -
| # | Art. no. | Description | Remarks |
|---|---|---|---|
| 1 | Go to the spare parts page: | ||
| 2 | 457.801.00.1 | Geberit filling segment for Sigma concealed cistern 12 cm | |
| 3 | 156.050.00.1 | Geberit sound insulation set for wall-hung WC | |
